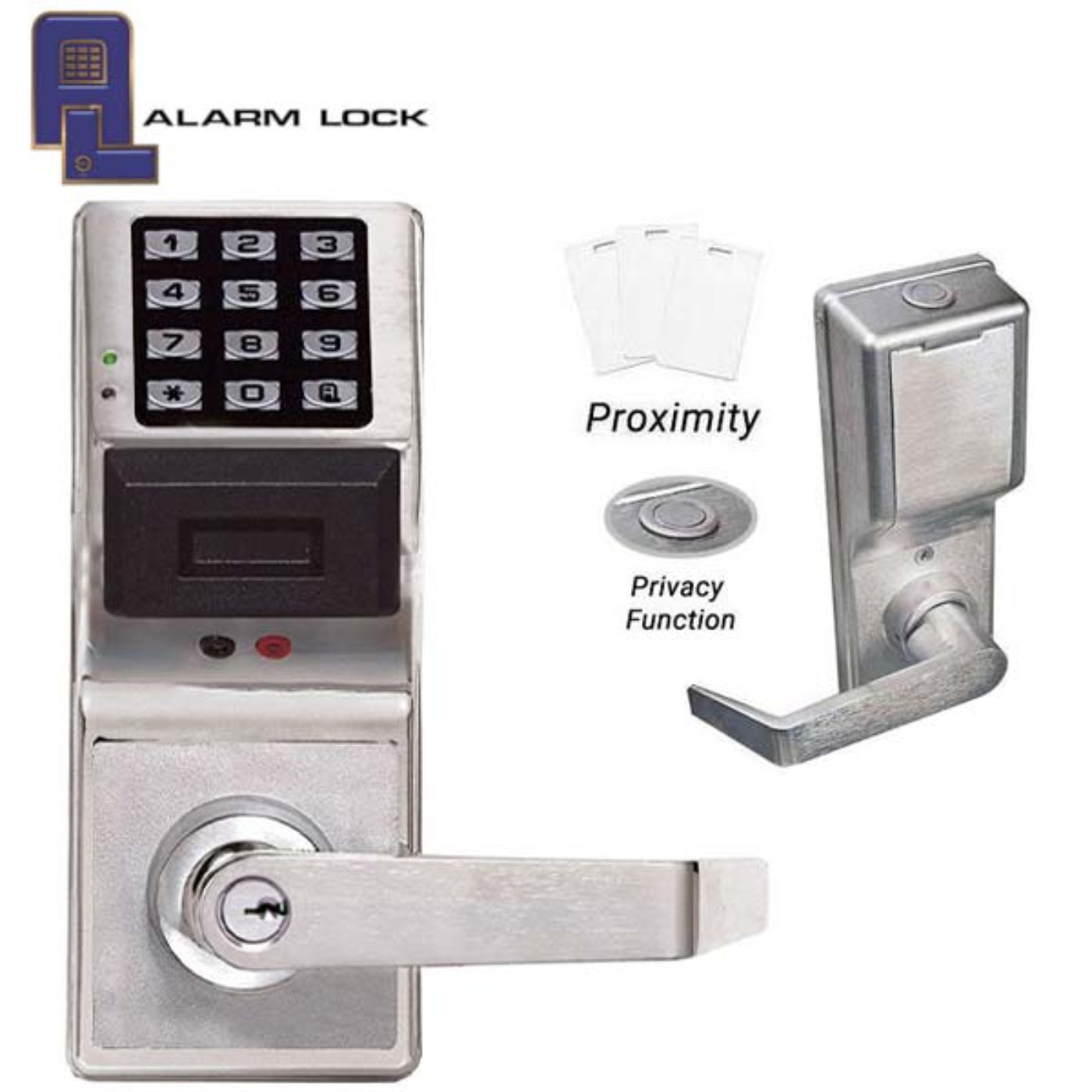

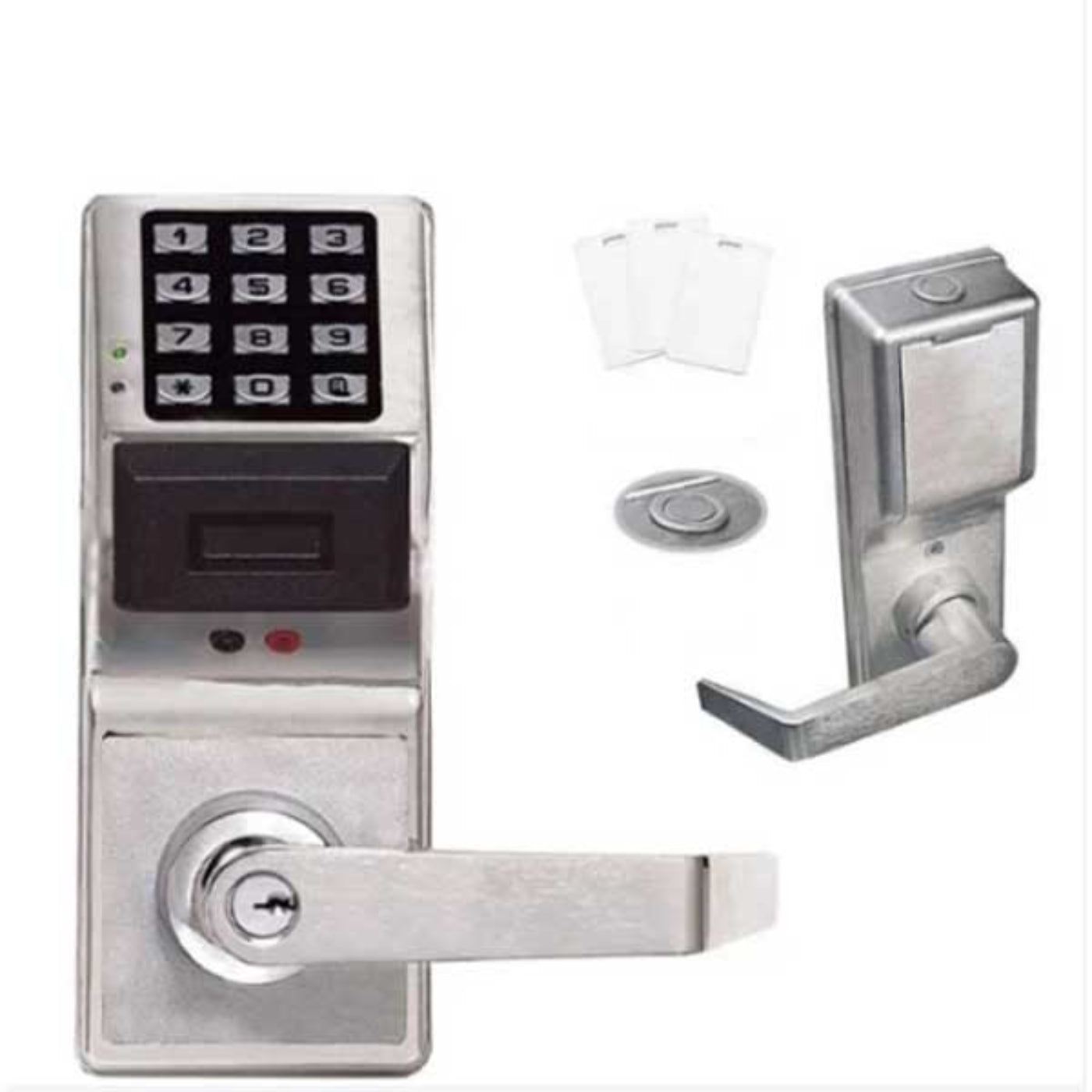

PDL4100-US26D Alarm Lock Trilogy Series Digital Cylindrical Keyless Lock Leverset with Privacy and Residency features in Satin Chrome Finish
The Trilogy PDL4100 Series is an Alarm Lock’s one of the most popular standalone pushbutton cylindrical lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting latch and reduces the stress on lock bodies and spindle. It has an outside lever free turning in the locked position. While entering the access code, key bypass or remote bypass allows the lever to retract the latch.
| LOCK FUNCTION | Entrance Digital PROX Keypad Lever Lock w/ Audit Trail & Privacy Feature |
|---|---|
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8″ to 1 7/8.” |
| BACKSET | 2 3/4″ Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| PROX READER | will read most HID card and keyfob formats |
| USERS | Holds up to 2000 PIN Codes with four different authority levels: Master, Management, Supervisor & basic user as well as multiple “one-time” user codes. 500 scheduled events & 40,000 event audit trail. |
| PRIVACY FEATURE | Push-button on inside of the door to temporarily lock out keypad codes (programmable option). Occupied and multi-status LED indicator, flashes when privacy session is active. |
| RESIDENCY FEATURE | This allows users to temporarily exit and close the door and have the door remain unlocked until it is physically relocked with code. |
| STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder, SC1 keyway furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw. Reversible |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| HANDING | Non-handed |
| FINISHES | US26D satin chrome |
| POWER | 5AA battery-pack operated(included); approx. 60,000 cycles supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive motor |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| DOOR PREP | Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Proximity card reader & keypad entry
Privacy feature for internal lock
Satin chrome finish for durability
High-capacity audit trail for access monitoring
Ideal for high-traffic environments
Q: What is the Alarm Lock Trilogy Digital PROX Keypad Lever Set with Audit Trail & Privacy Feature (ALL-PDL4100-26D)?
A: The Alarm Lock Trilogy Digital PROX Keypad Lever Set (ALL-PDL4100-26D) is a high-security keyless entry lock system that combines a proximity card reader, digital keypad, and enhanced privacy feature. It is designed for secure, flexible access control with detailed auditing capabilities.
Q: What finish does this model have?
A: The lock comes in a Satin Chrome (26D) finish, providing a sleek and durable look suitable for various settings.
Q: What access methods does this lock support?
A: The lock supports proximity card access and PIN code entry, offering versatile access control options.
Q: What is the privacy feature?
A: The privacy feature allows the user to temporarily lock the door from the inside, ensuring no one can access the room until the privacy mode is disabled, ideal for areas requiring additional privacy control.
Q: Does it include an audit trail?
A: Yes, the lock supports an audit trail feature, storing and tracking up to 40,000 access events, allowing administrators to review entry history for enhanced security management.
Q: Is this lock suitable for commercial use?
A: Yes, this lock is designed for commercial or institutional environments, offering advanced security features ideal for offices, schools, healthcare facilities, and other high-traffic areas.
Q: What are the key features of the Alarm Lock Trilogy PDL4100-26D?
A: Key features include proximity card and PIN code access, privacy feature for added security, high-capacity audit trail (up to 40,000 events), and a durable Satin Chrome finish.
Battery Replacement: Change batteries every 1-2 years or when the low battery alert appears.
Clean Keypad & Prox Reader: Wipe with a soft, damp cloth to prevent dust and dirt buildup.
Audit Trail Review: Regularly download and monitor audit trail data for enhanced security tracking.
Privacy Feature Check: Periodically test the privacy feature to ensure proper functionality.
Firmware Updates: Keep firmware updated for optimal security and feature performance.
Lubricate Moving Parts: Apply silicone-based lubricant every 6 months for smooth lever operation.
| Weight | 9.2506 lbs |
|---|---|
