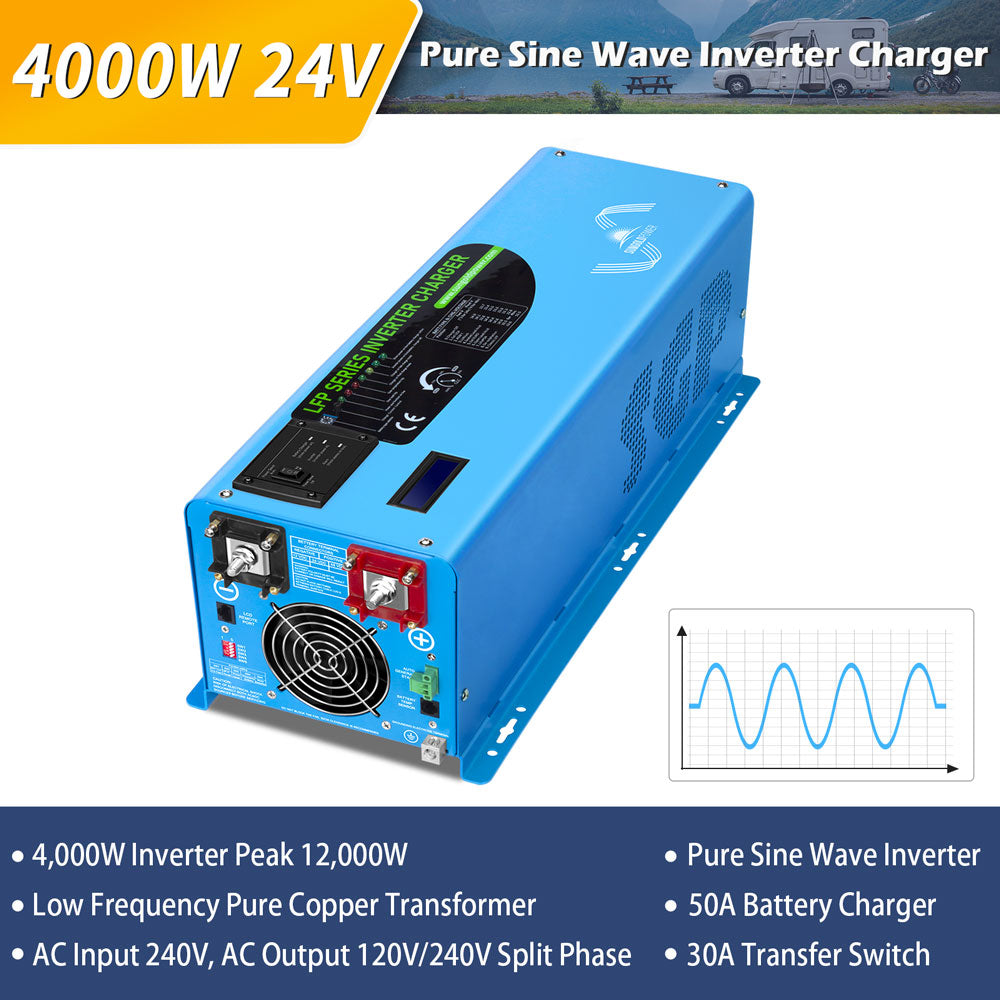

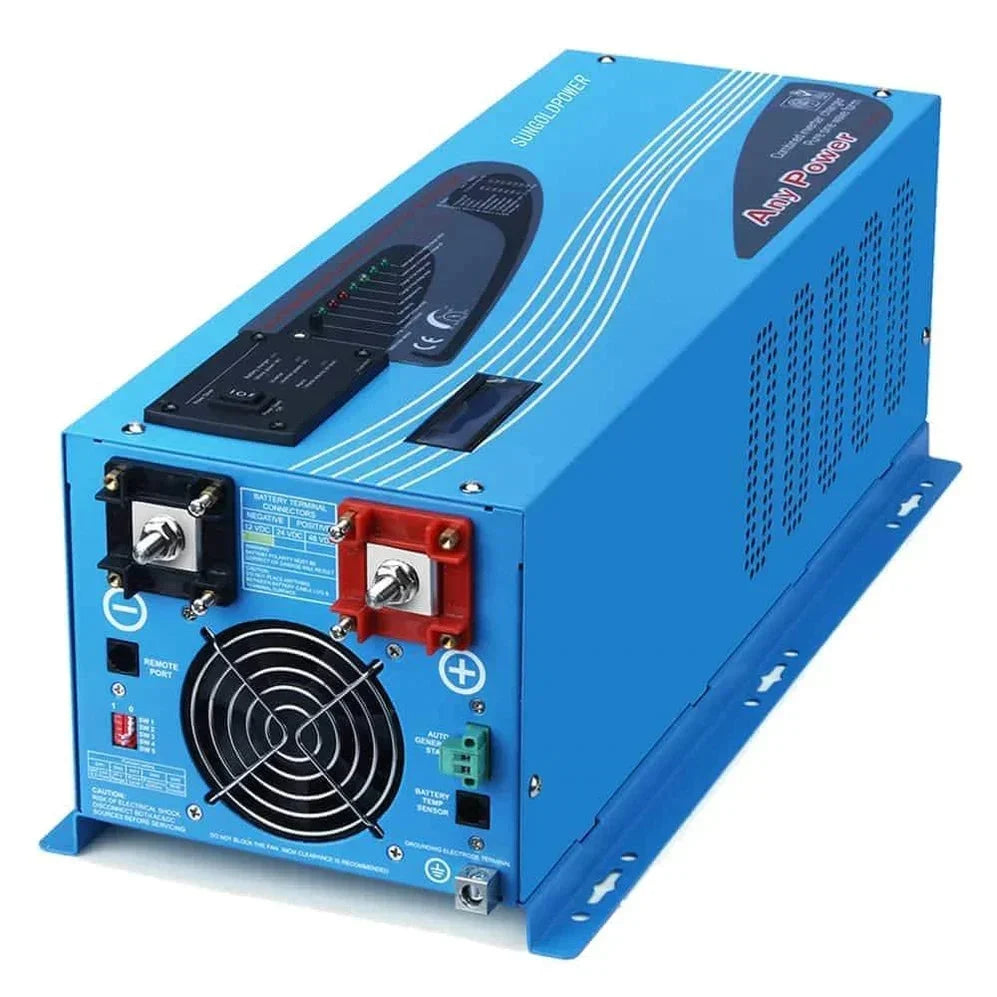

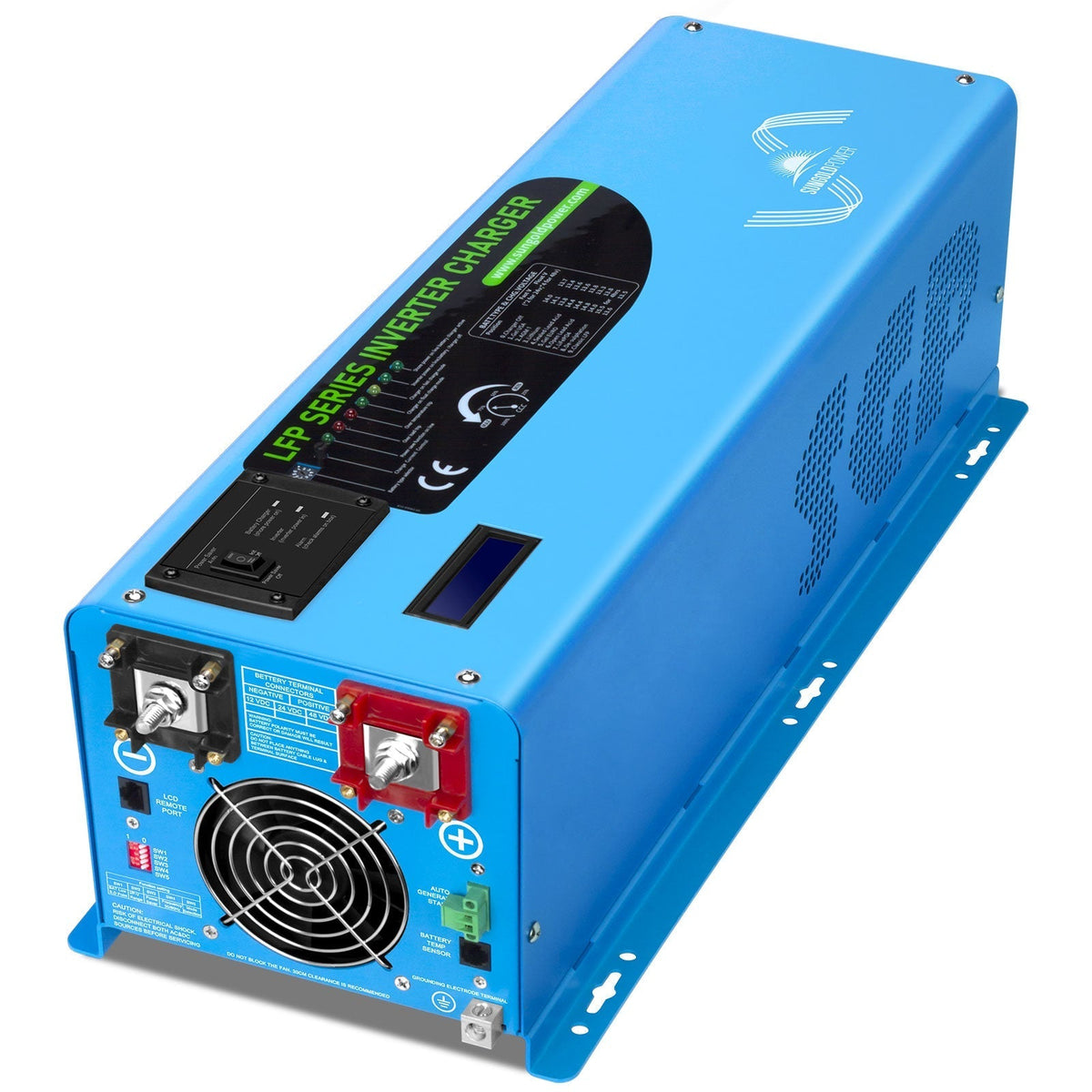

4000W DC 24V Split Phase Pure Sine Wave Inverter With Charger - LFP4K24V240VSP

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

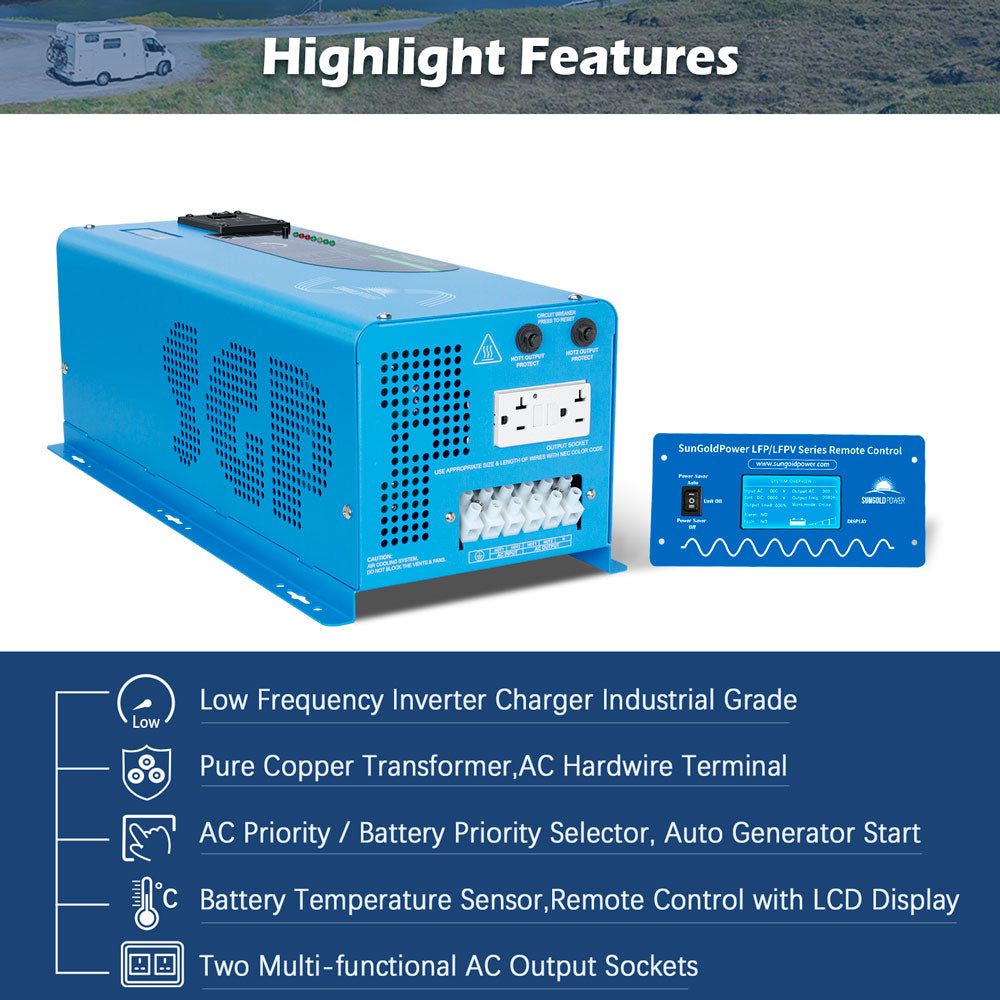

Product Highlight

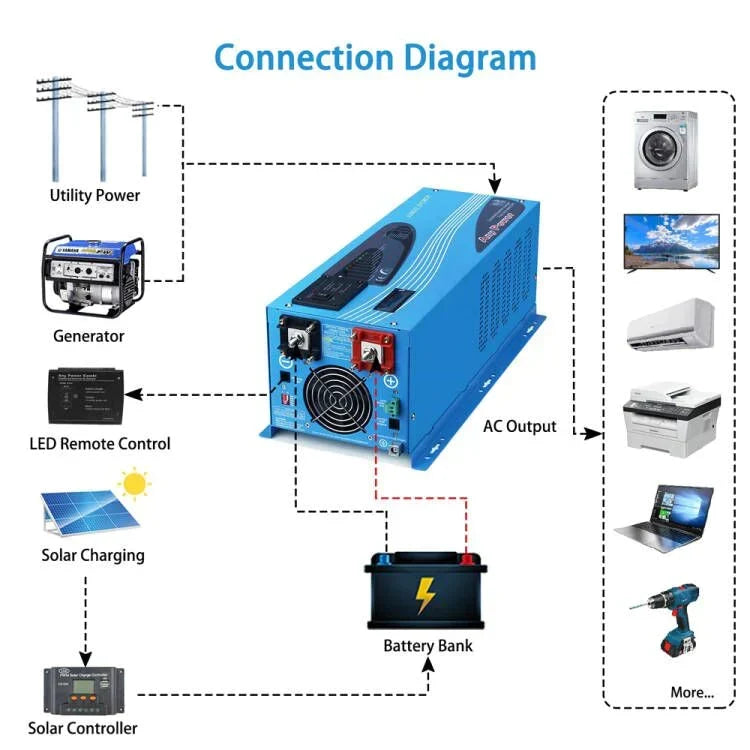

• ★ This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.

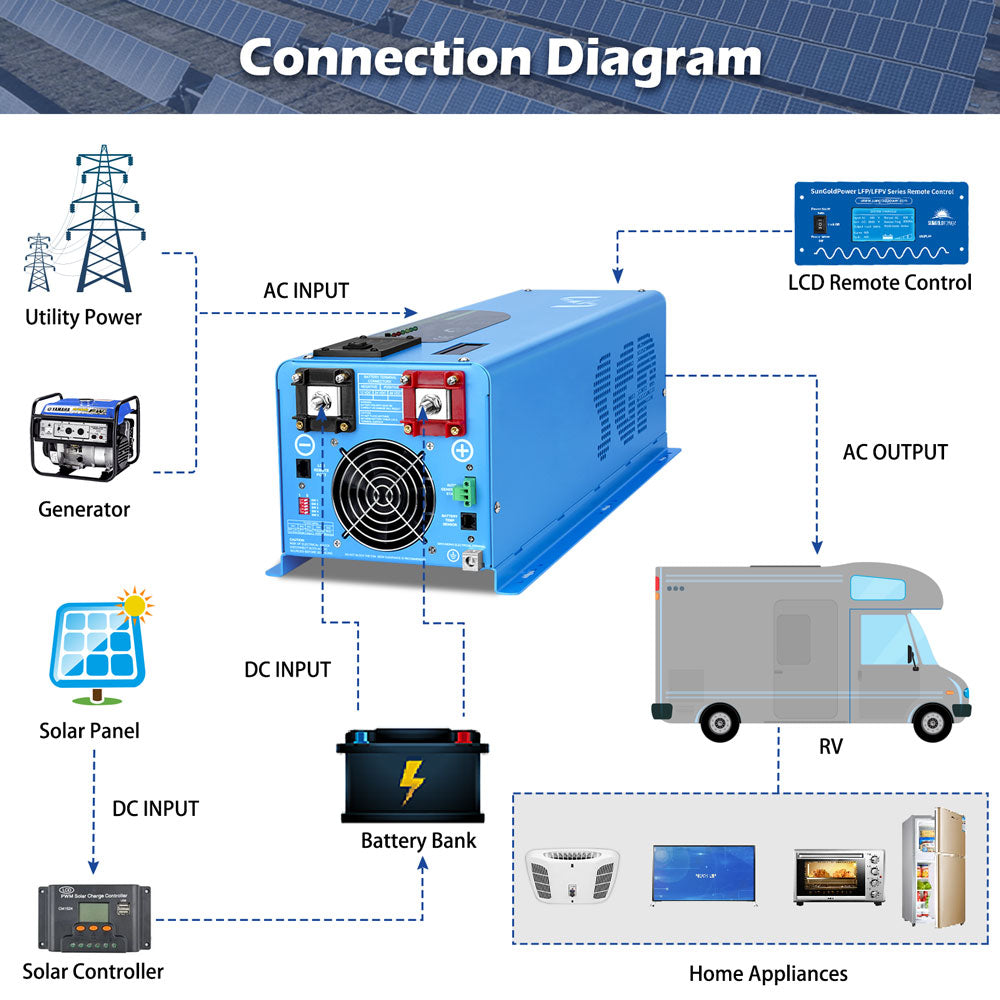

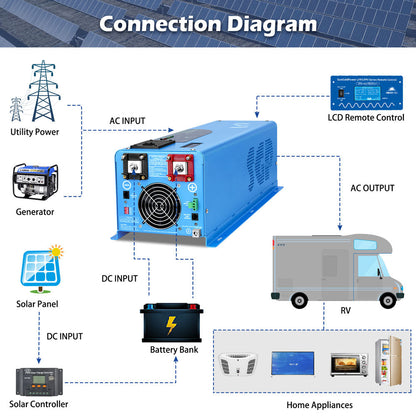

• ★The split-phase 4000-watt power inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

• ★ AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.

• ★ Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.

• ★ Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.

Specification

Main Features:
*4000W Low Frequency Pure Sine Inverter With Charger.

*AC/Battery Priority Selector.

*Automatic Generator Start.

*Safety and Convenient.

*The low frequency inverter can power all kinds of appliances.

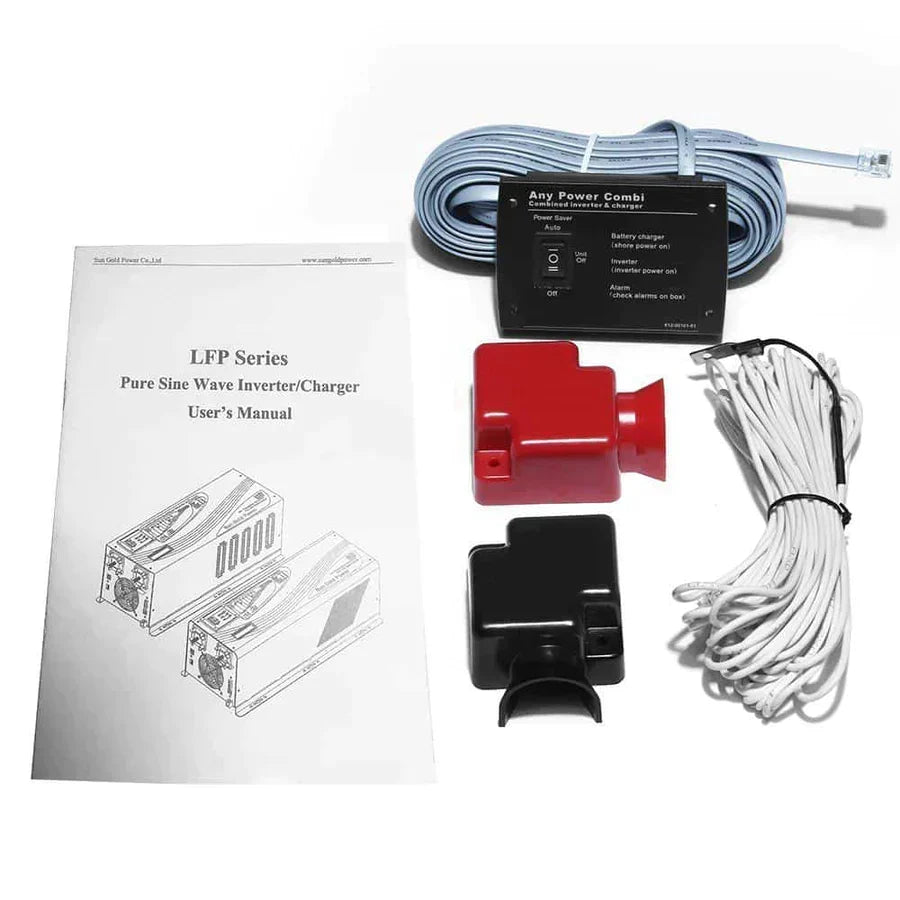

*LCD Display, Remote Control.

*Low Idle Consumption.

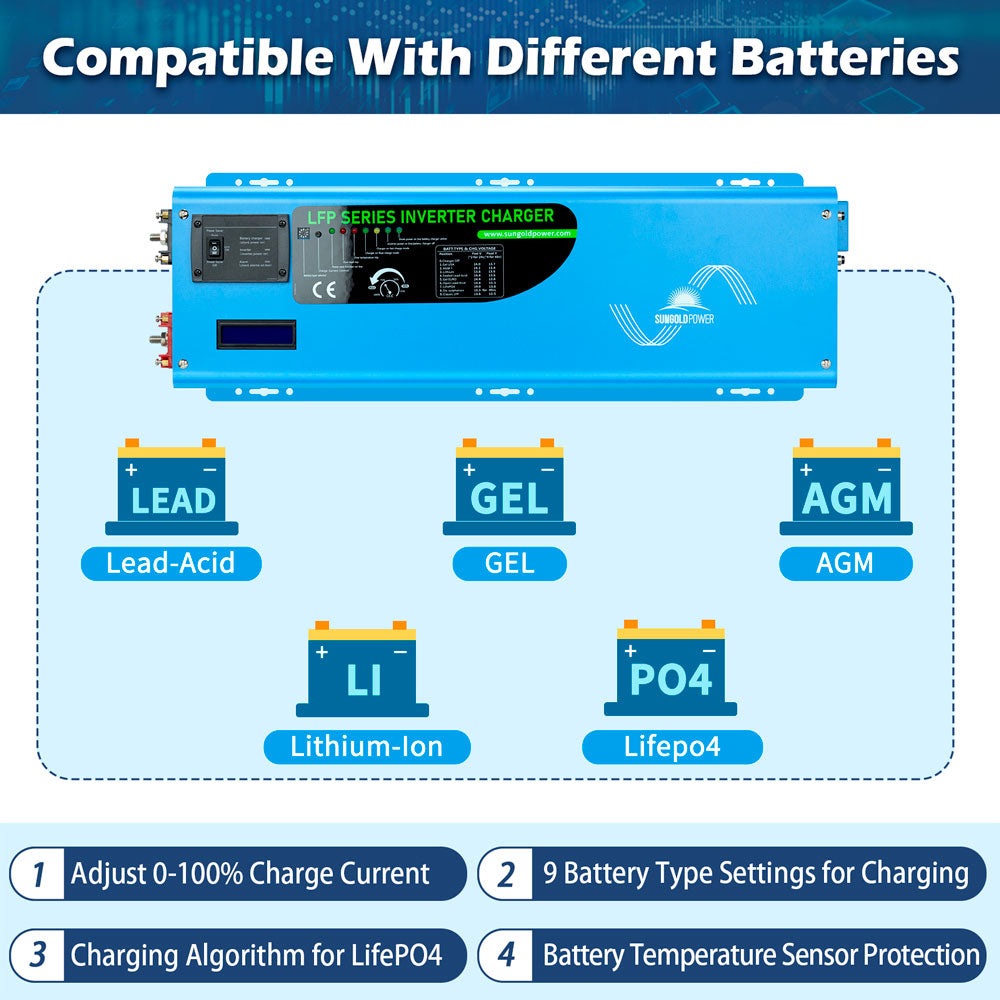

*9 battery type settings for charger.

*Multi Stage Smart charger 50+/-5A, charger can be disable.

*10msec typical transfer time.

Inverter Output
*Continuous Output Power: 4000W

*Surge Rating: 12000W (20 Seconds)

*AC Output: AC 120V and AC 240V

*AC Input: 240V

*Output Wave: Pure Sine Wave (bypass mode)

*Typical Transfer Time: 10ms (MAX)

*Nominal Efficiency: >88%

DC Input
*Nominal Input Voltage: 24.0Vdc

*Minimum Start Voltage: 20.0Vdc

*Low Battery Alarm: 21.0Vdc-22.0Vdc

*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)

*High Voltage Alarm: 32.0Vdc

*Low battery Voltage Restart: 26Vdc

*Idle Consumption: 48W

*Power Saver Mode Idle Consumption: 19W

AC Charger :
*Charger Rate: 50+/-5A

*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)

*Over Charge Protection Shut down: 31.4V

*Selectable Charge Setting based on battery type

*Adjustable charge current: off 0%-100%

*3-step intelligent battery charger

What Our Experts Think

• Powerful Output: Offers 4,000W continuous power, suitable for medium-sized off-grid and backup systems.
• Split-Phase Design: Provides 120V/240V output, allowing compatibility with both standard and high-demand appliances.
• Pure Sine Wave Technology: Delivers clean, stable energy, protecting sensitive electronics and ensuring efficient operation.
• 24V DC Compatibility: Perfect for 24V battery systems in solar setups, RVs, boats, and small homes.
• Integrated Charger: Combines inverter and charger functions for streamlined battery management.
• Enhanced Safety Features: Includes protections against overload, over-voltage, and short circuits for reliable performance.
• User-Friendly Design: Compact, easy to install, with intuitive controls and clear status monitoring indicators.

Q&A

Q: What is the 4000W DC 24V Split Phase Pure Sine Wave Inverter with Charger (LFP4K24V240VSP)?
A: A 4000W pure sine wave inverter with split-phase 120V/240V output and an integrated charger, designed to convert 24V DC to AC power, ideal for both off-grid and backup power applications.

Q: What are its key features?
A:

• 4000W continuous pure sine wave output
• Split-phase 120V/240V for powering diverse appliances
• Compatible with 24V battery systems
• Integrated charger for efficient battery recharging
• Built-in protections: overload, overheat, and short circuit

Q: What applications is it ideal for?
A: Perfect for off-grid homes, RVs, boats, and backup power, supporting both 120V and 240V appliances.

Q: Can it power heavy appliances?
A: Yes, the split-phase capability makes it suitable for high-demand devices like refrigerators, water pumps, and power tools.

Q: Is it safe for sensitive electronics?
A: Yes, the pure sine wave output ensures safe and stable operation for electronics like TVs, laptops, and medical devices.

Q: Is it easy to install?
A: Yes, it has a user-friendly design for straightforward installation and reliable operation

Maintenance Tips

• Cooling System: Keep vents and fans clean to ensure efficient heat dissipation.
• Battery Care: Regularly inspect battery voltage, terminals, and charge cycles for proper function.
• Wiring Inspection: Tighten and check all cables for wear, corrosion, or damage.
• Environment: Install in a dry, ventilated, and dust-free location to protect components.
• Performance Monitoring: Use monitoring tools to track input/output voltage and avoid overloads.
• Firmware Updates: Update firmware as needed for enhanced performance and system compatibility.
• Safe Servicing: Power down and disconnect all power sources, including batteries, before maintenance.
