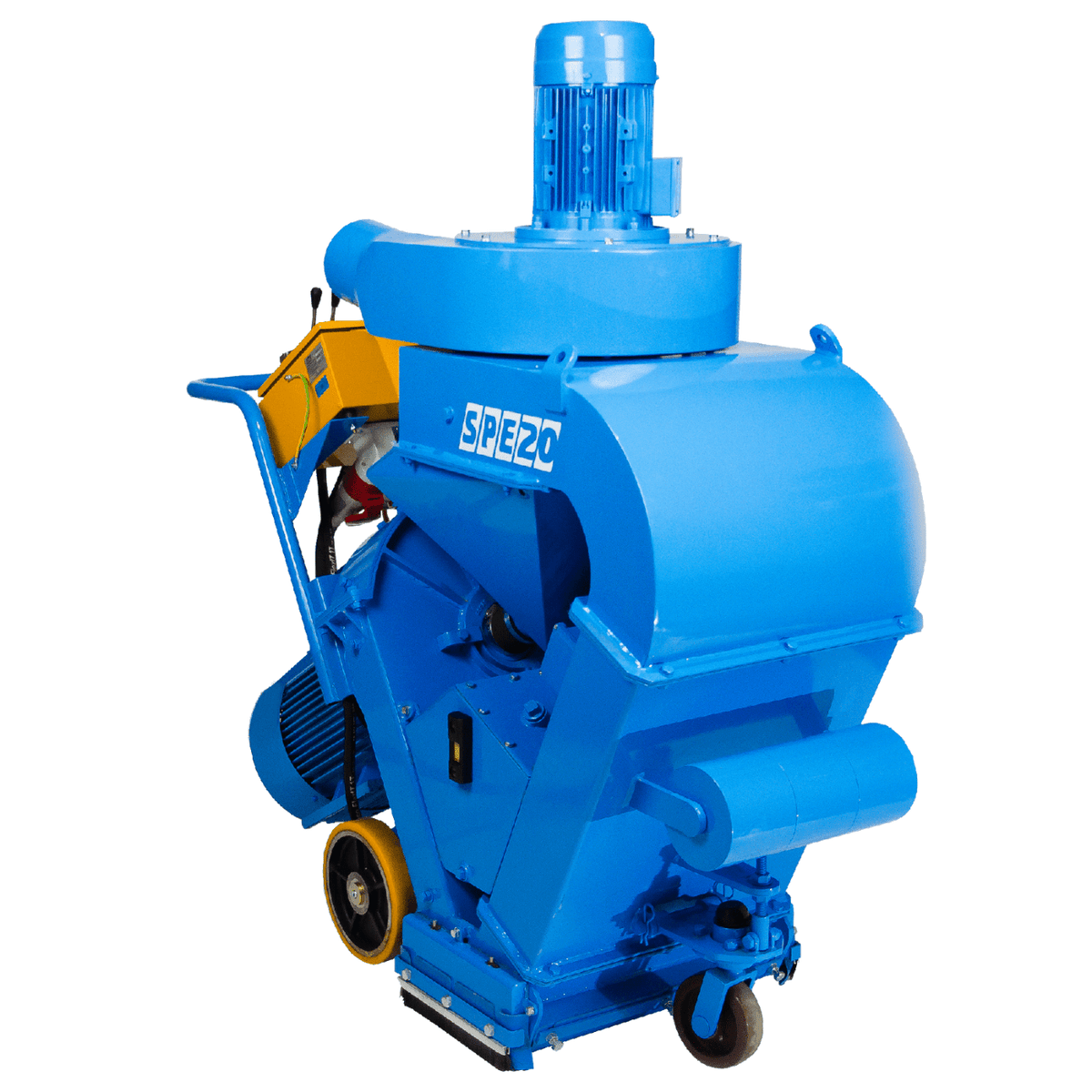

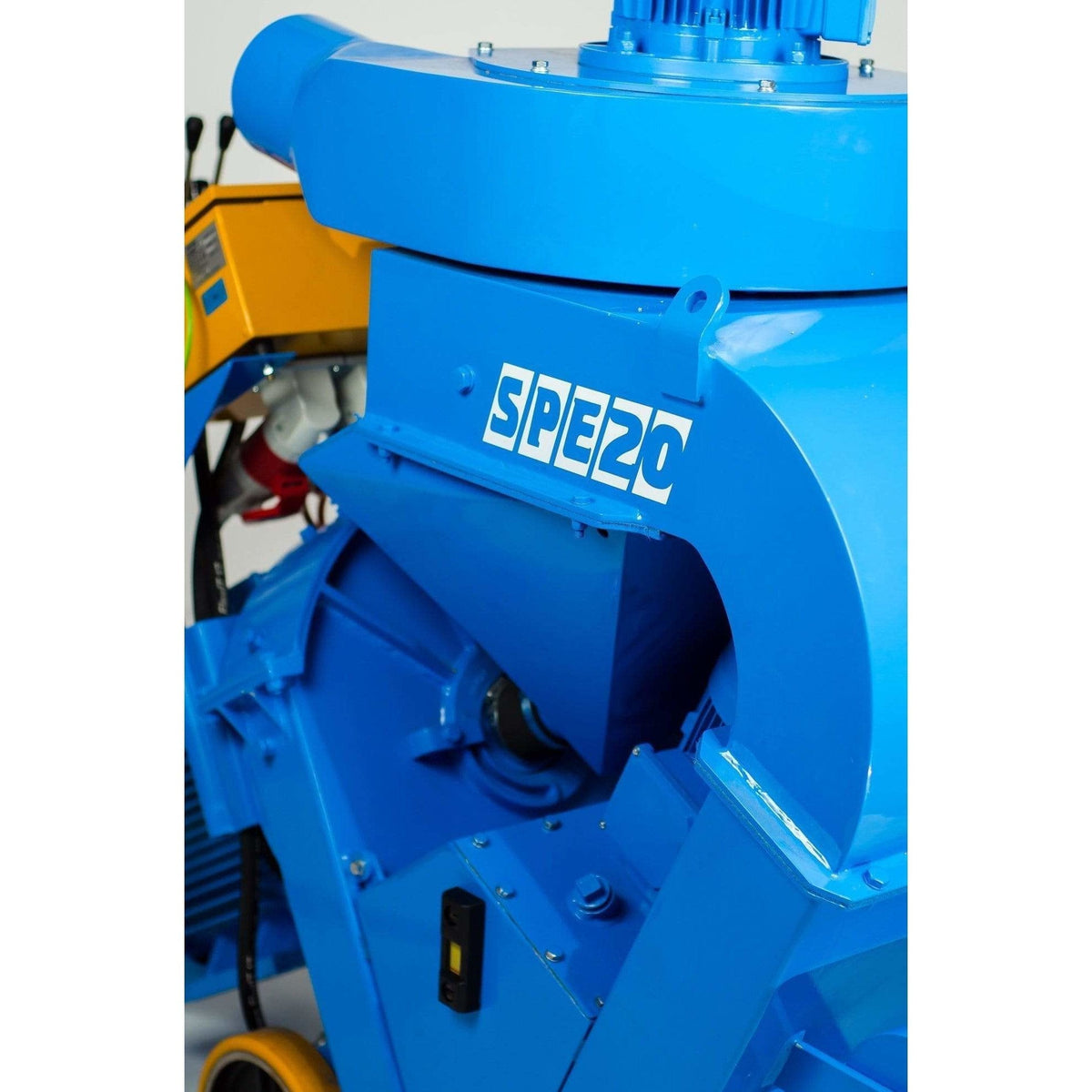

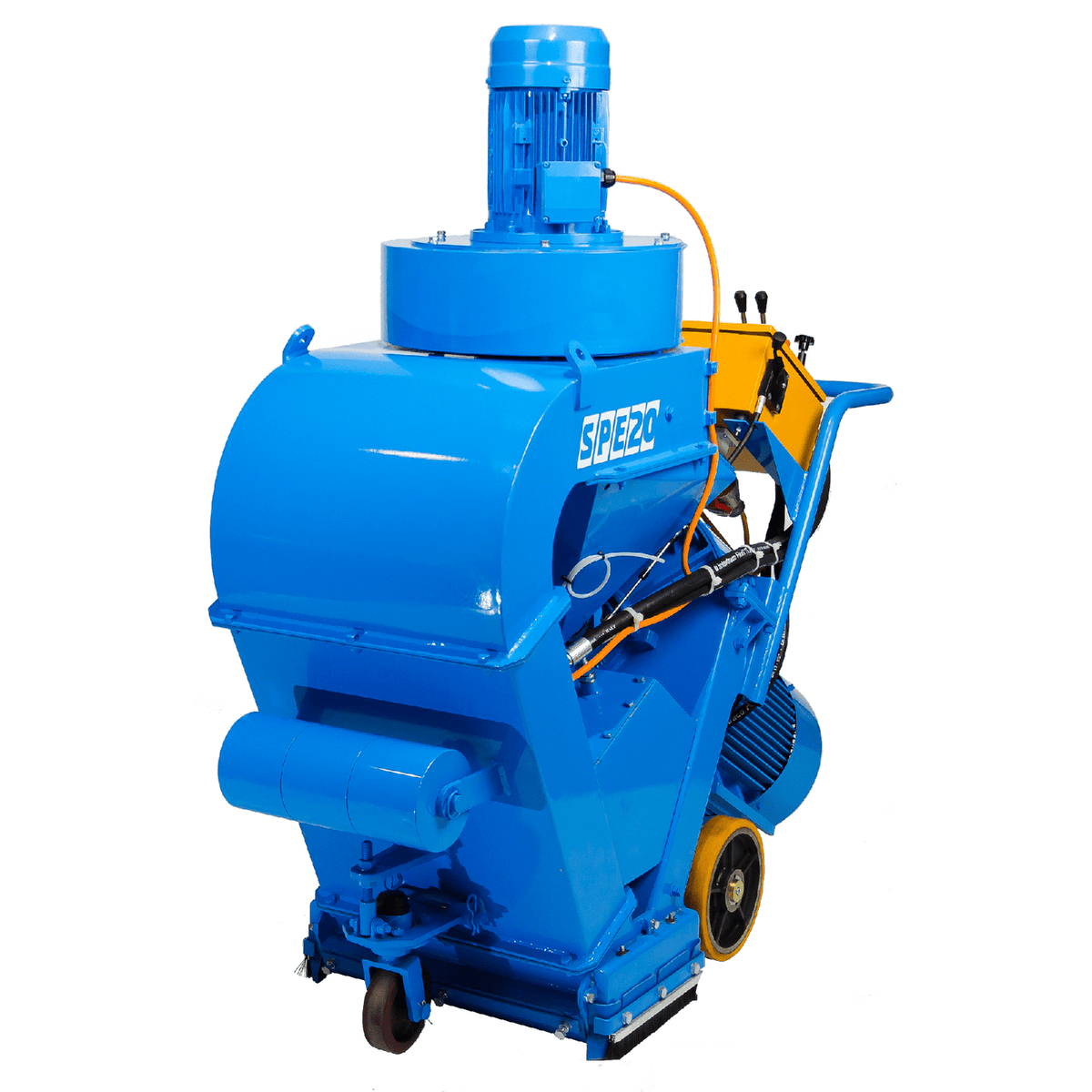

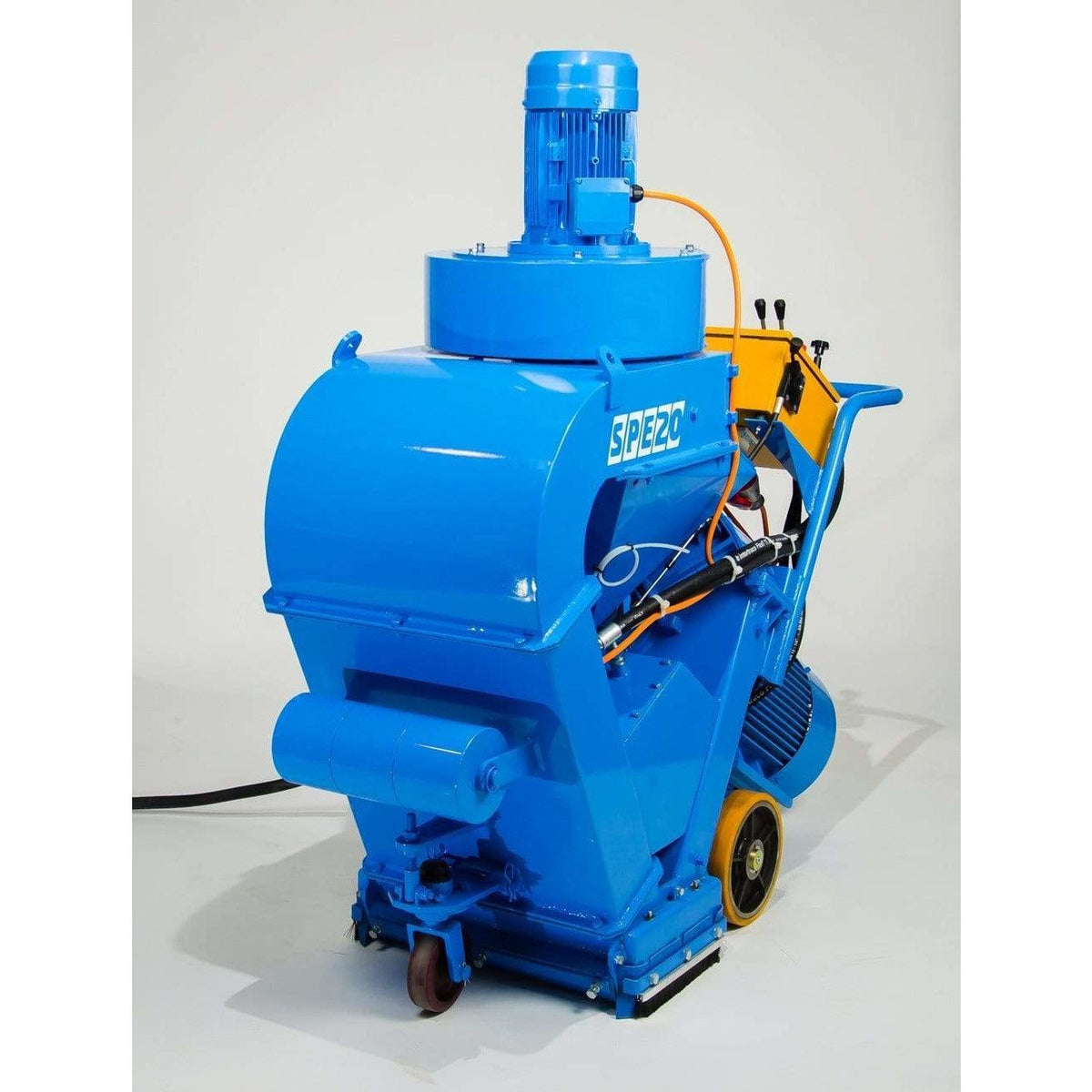

The SPE 20ES shot blaster is a large machine for the serious contractor, ideal for high productivity. Electrically powered, it is mainly used for preparation of concrete floors but equally effective on steel surfaces.
- 508mm (20″) working width
- Electrically powered, hydraulic dive
- Fast blast steel to SA 2.5- 3 standards, concrete and asphalt with ease
- Optional seal system to vary blast width
See Features Below
- Blast unit constructed of manganese steel
- Dust collector fitted with integral compressor and reverse air jet pulsation system to allow continuous working
- Drive wheels are within the width of the blast cabinet
- Blasting width can be reduced for line removal and weld inspection
- Self propelled variable speed drive allows complete operator control
- Grill fitted into lower separator hopper unit assembly to eliminate foreign objects being allowed into the blast wheel and causing damage
- Capable of using up to S780 abrasive
- Blast wheel can be rotated in both directions (optional extra)
- Can be dismantled to pass through a 600mm access hole in storage tanks
Specifications
Type: 400 or 460v 3Ø
Power Output (Blast Motor) (hp/kw): 30 / 22.5
Cleaning Width (mm): 520
Length (mm/in): 1730 / 68.1
Width (mm/in): 1030 / 40.6
Height (mm/in): 1600 / 63
Weight (kg/lb): 400 / 880
Manuals
Spec Sheet
What Our Experts Think
-
Exceptional Power: The Bartell Global SPE20ES Self-Propelled Shot Blaster is powered by a 23HP motor and 460V, 3-phase electric system, offering outstanding performance for large-scale surface preparation.
-
Self-Propelled Convenience: Designed for ease of operation, the self-propelled feature reduces operator effort, allowing for quicker and more efficient surface cleaning.
-
Durable Construction: Built to withstand heavy-duty use, ensuring long-lasting durability and reliability on demanding job sites.
-
Efficient Surface Preparation: Ideal for removing coatings, cleaning, and roughening concrete surfaces, delivering uniform results and enhancing surface adhesion.
-
Versatile Applications: Perfect for commercial and industrial projects, including floor preparation, concrete resurfacing, and surface restoration.
-
Electric Power Efficiency: The 460V, 3-phase electric motor provides consistent power while reducing maintenance and operational costs compared to gas-powered alternatives
Q&A
Q: What is the Bartell Global 20" Self Propelled Shot Blaster SPE20ES used for?
A: The Bartell Global 20" Self Propelled Shot Blaster SPE20ES is designed for heavy-duty surface preparation, including removing coatings, rust, and contaminants from concrete, steel, and asphalt surfaces.
Q: What are the key features of the Bartell Global 20" Self Propelled Shot Blaster SPE20ES?
A: The SPE20ES features a 20" working width, a powerful 23HP motor, and 460V 3-phase electric power, offering exceptional performance for large-scale industrial projects.
Q: Is the Bartell Global 20" Self Propelled Shot Blaster SPE20ES easy to operate?
A: Yes, the SPE20ES is self-propelled with user-friendly controls, making it easy to maneuver and operate, even for users with limited experience.
Q: What type of power supply does the Bartell Global 20" Self Propelled Shot Blaster SPE20ES require?
A: The SPE20ES operates on 460V 3-phase electric power, ideal for industrial environments that demand high power and productivity.
Q: Does the Bartell Global 20" Self Propelled Shot Blaster SPE20ES come with a warranty?
A: Yes, the Bartell Global 20" Self Propelled Shot Blaster SPE20ES is backed by a manufacturer’s warranty, ensuring reliable performance and long-term durability
Maintenance Tips
-
Clean After Use: Clean the shot blaster thoroughly after each use, removing shot particles, concrete dust, and debris from the system to maintain optimal performance.
-
Inspect Blasting Components: Regularly inspect the blasting wheels and other key components for wear or damage. Replace worn parts as needed to maintain consistent blasting efficiency.
-
Lubricate Moving Parts: Lubricate the drive system, wheels, and bearings to reduce friction, prevent wear, and ensure smooth movement.
-
Check Electrical Connections: Inspect all electrical connections and wiring for signs of damage, wear, or loose connections. Ensure that all connections are secure.
-
Maintain Abrasive System: Clean the abrasive metering system and hopper to ensure proper abrasive flow and prevent clogs.
-
Monitor Filters: Regularly inspect and clean filters to ensure proper airflow and prevent buildup that could affect performance.
-
Check Tires and Wheels: Ensure tires are properly inflated, and wheels are in good condition for smooth operation and easy maneuvering.
-
Tighten Fasteners: Periodically check and tighten bolts, nuts, and fasteners to prevent loosening during use, which could lead to vibrations or misalignment.
-
Proper Storage: Store the shot blaster in a clean, dry environment to protect it from corrosion and damage when not in use
