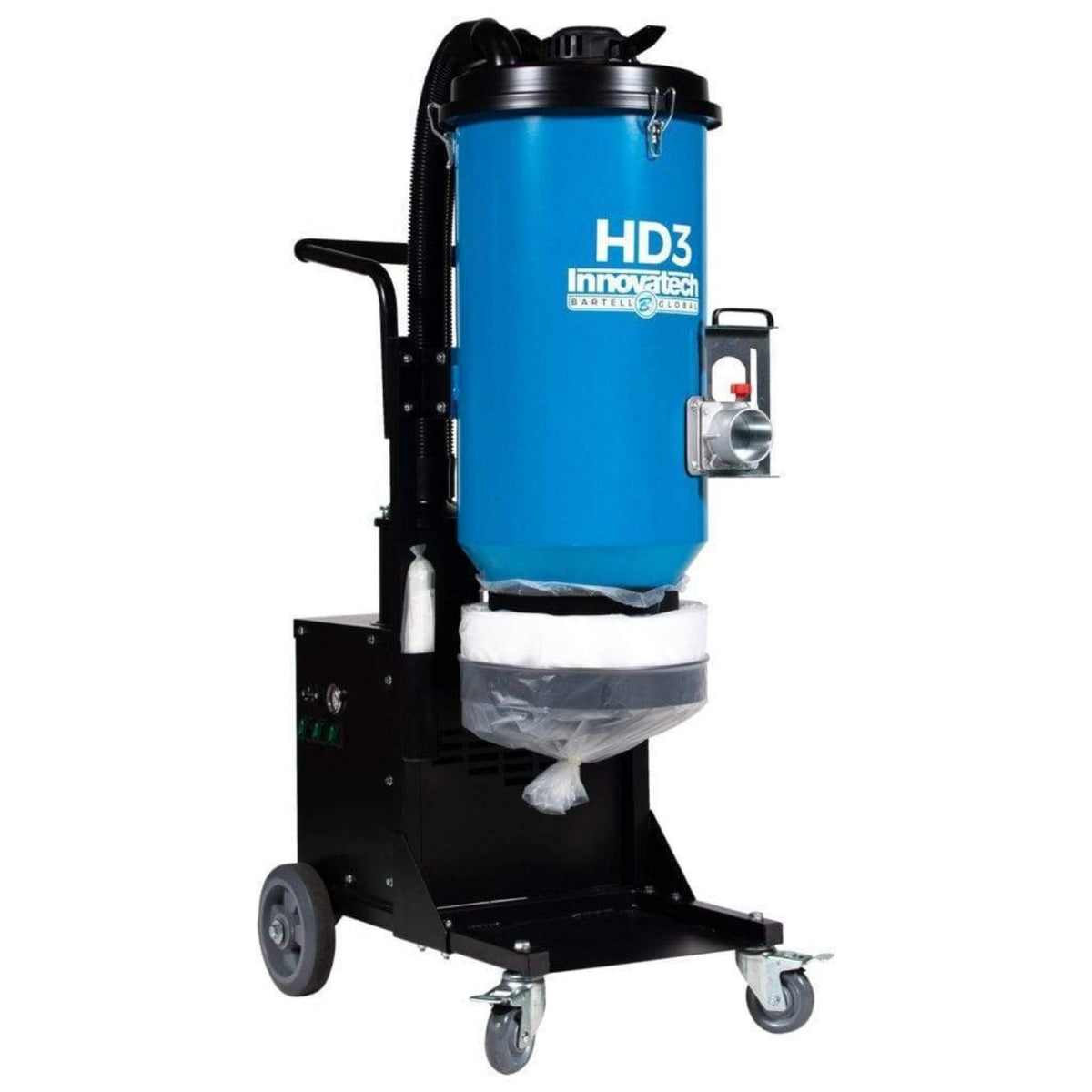

HD3 is a three-motor HEPA dust extractor, which features a two-stage filtering system including a conical main filter and three HEPA filters
-

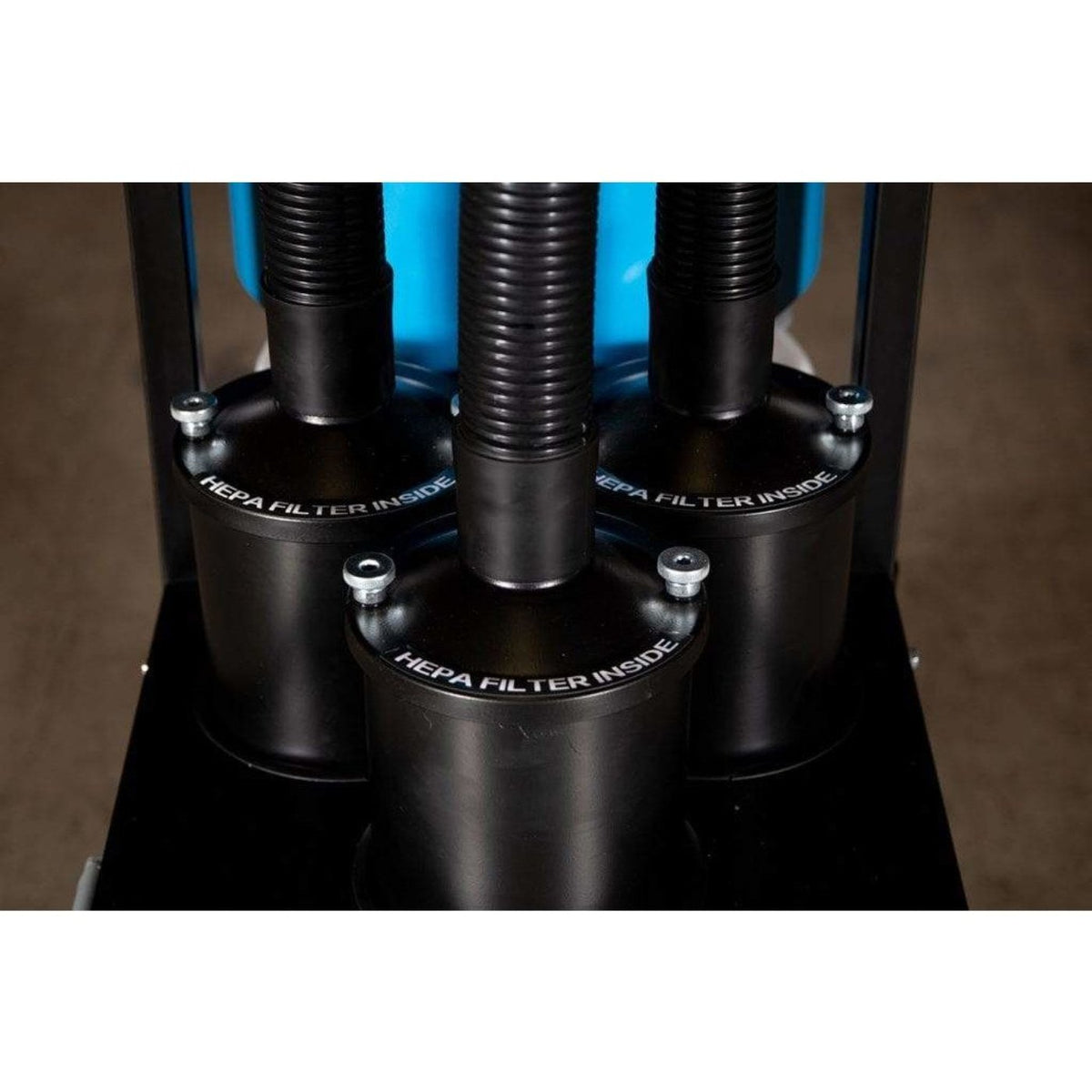

Equipped with three HEPA filters which are individually tested and certified complying H13
-

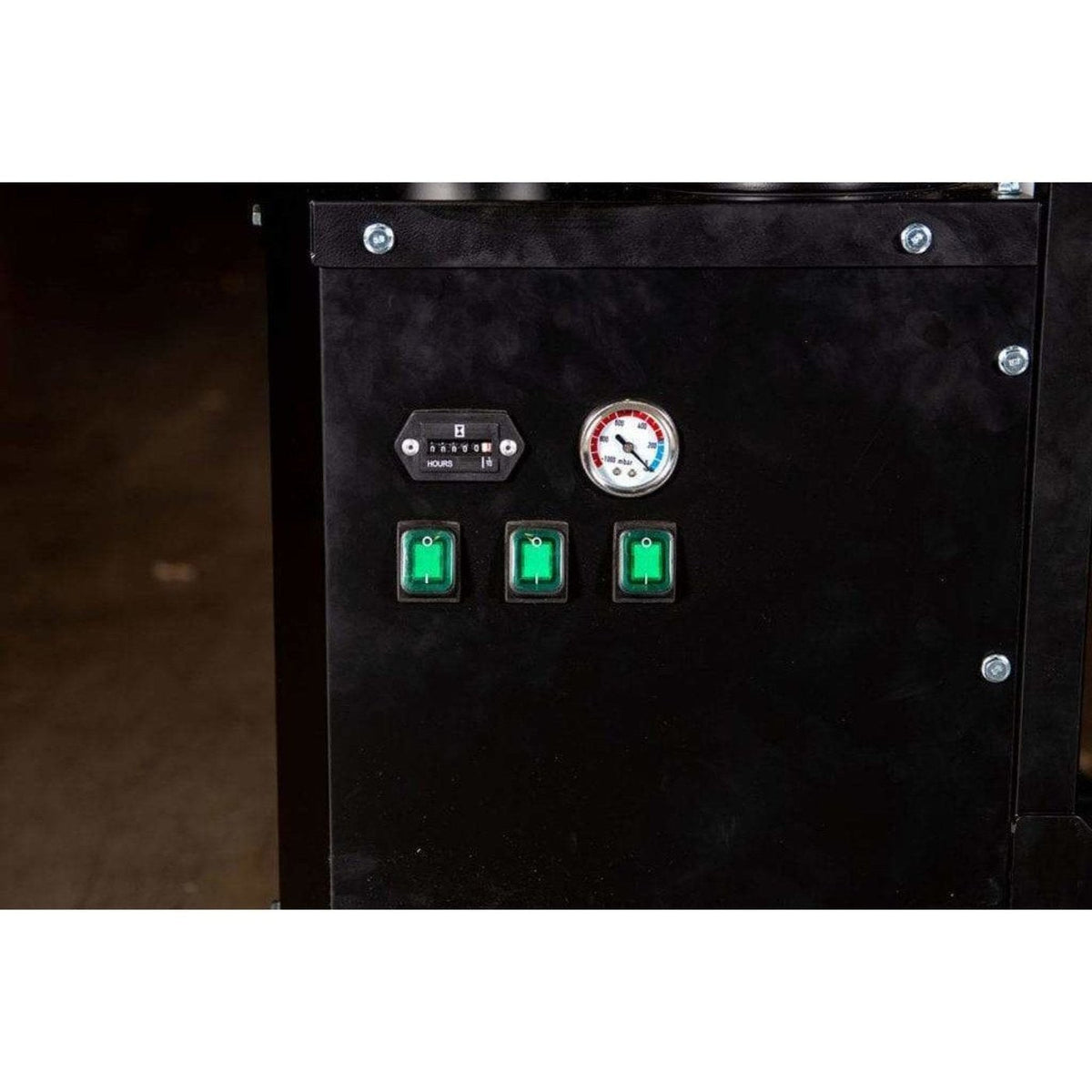

3 Individual motor switches – provides variable suction strength and power
-
“Reverse-air” jet-pulse filter cleaning system – effectively cleans and removes dust build-up on filters
-
Easy to use “Inlet closure door” – eliminates the need to remove hoses when pulsing and cleaning filters
-
Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding
-
Equipped with a “Continuous Bag” disposal system for effective dust collecting
Specifications
Volts: 230v
Inlet: 50mm
Power (HP): 4.8 HP
Amps: 12
Air Flow (cfm): 356
Water lift (inches): 90
Pre-filter (f8): 48 ft >99.5% @1.0um
HEPA Filter (H13): 39 ft2 >99.99% @0.3um
Dimensions: 30” x 22” x 56”
Weight: 149lbs
Manuals
Spec Sheet
What Our Experts Think
-
Dual Voltage Options: Operates on both 110V and 230V single-phase power, offering flexibility for various job sites and power requirements.
-
HEPA Filtration: Equipped with a high-performance HEPA filter, it effectively captures fine dust particles, ensuring superior air quality and compliance with safety standards.
-
Enhanced Dust Control: Perfect for pairing with surface preparation equipment like grinders, scarifiers, and shot blasters, the HD3 ensures cleaner air and a more comfortable working environment.
-
Compact & Portable: Its compact size and lightweight design make it easy to move and use in tight or confined spaces, offering convenience and portability on the job.
-
Durable Build: Constructed with high-quality materials to withstand the demands of heavy-duty, industrial environments, ensuring longevity and reliability.
-
Low Maintenance: Designed for easy servicing and maintenance, reducing downtime and keeping your operations running smoothly
Q&A
Q: What is the Bartell Global HEPA Dust Collector - HD3?
A: The HD3 is a versatile HEPA dust collector designed to capture fine dust particles, ensuring cleaner air and a safer work environment in a range of industrial applications.
Q: What is its power specification?
A: It operates on both 110V and 230V, single-phase power, making it adaptable for various job sites and work environments.
Q: What are its key features?
A: HEPA filtration for efficient dust capture, dual voltage (110V/230V), compact and durable design, and high-performance dust extraction for better air quality.
Q: Why is this dust collector important?
A: It helps maintain a clean and healthy work environment by effectively capturing harmful fine dust particles, reducing health risks and ensuring compliance with safety standards.
Q: Where can it be used?
A: Ideal for construction, flooring, and surface preparation applications, particularly where controlling fine dust is crucial for worker safety and equipment longevity
Maintenance Tips
-
Inspect and Clean Filters: Check the HEPA filter regularly for dust accumulation. Clean or replace the filter as needed to maintain peak filtration performance.
-
Empty Dust Collection Bin: Regularly empty the dust collection bin to prevent overfilling, which can reduce suction efficiency and airflow.
-
Inspect Hoses and Connections: Examine hoses and all connections for blockages, leaks, or wear. Clean and replace components if necessary to maintain effective dust extraction.
-
Monitor Motor and Electrical Components: Ensure the motor is running smoothly and check for overheating, strange noises, or loss of power. Inspect the power cord and electrical connections for any damage or wear.
-
Clean the Unit: After each use, clean the unit, removing any dust or debris that could affect its operation and performance. Wipe down the exterior to keep it free from buildup.
-
Lubricate Moving Parts: Apply lubrication to moving parts like the fan and motor bearings to reduce friction and prevent premature wear.
-
Check for Leaks: Inspect the dust collector for air leaks in seals, hoses, and joints. Repair or replace any worn-out parts to maintain suction efficiency.
-
Test HEPA Filter Performance: Periodically test the HEPA filter's ability to capture fine particles. Replace the filter if it no longer meets efficiency standards.
-
Inspect Bolts and Fasteners: Regularly check and tighten any loose bolts, screws, or fasteners to prevent parts from coming loose during operation.
-
Schedule Annual Professional Maintenance: Have the dust collector professionally inspected once a year to ensure all components are functioning properly and to address any issues early
