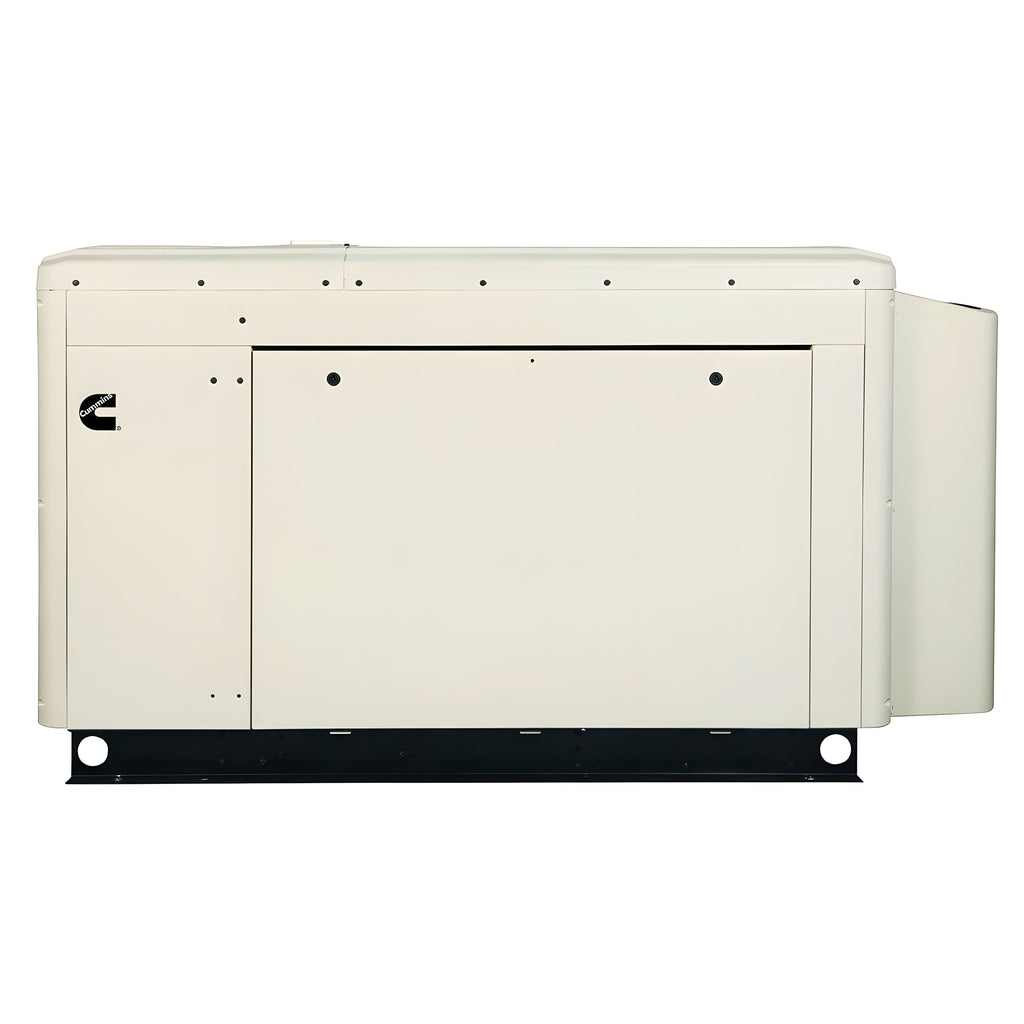

Equipped with 2400 cc engine, the Cummins Quiet Connect RS Cummins A051Y420 RS40 40kw Power Quiet Connect™ Series Liquid Cooled 3 Phase Home Standby Generator LP/NG NewSeries 22-40kW Standby Generator is a reliable source of power for
medium to large homes. It runs at 22,000 to 40,000 watts both on natural or propane gas with a voltage of 120/208 single phase to 277/480 three phase. The engine has a 12V automatic starting system and runs a 5-ton A/C under full preload. It features a liquid-cooled cooling system with extremely quiet operation up to 60 to 64-decibel rating at 23 feet with a Sandstone Sound Level 1 enclosure and muffler. It has 1,800 RPM designed to provide reliability and fuel efficiency.
Features
- Reliable Cummins Engine - QSJ2.4 engine for reliable power
- Robust Product Design and Testing
- Flexible Exercise mode duration that suits the customer's preference - as little as 2 minutes every 6 months
- Advanced Enclosure Design capable of withstanding winds up to 150 MPH
- Self diagnostics and easy service
- Control Systems - PowerCommand 1.1 control with 128 x 64 backlit LED display for improved user experience
- Brushless Proven Alternator
- Sound Attenuated - aluminum enclosure material plus durable powder coat paint
- Limited Base Warranty - 2 Years/400 Hours Standby
Specifications
| Manufacturer's Warranty | 2 Yr Consumer Limited |
|---|---|
| Rated Watts | 40,000 |
| Voltage | 3 phase (208/240/480v) |
| Start Type | Automatic w/ transfer switch (not included) |
| Engine | Cummins Onan |
| Engine Displacement | 2.4L |
| Decibel Level @ 23 ft. | 63db |
| Fuel Consumption (NG) | 519 cu.ft/hr (full load) 304.7 cu.ft/hr (half load) |
| Fuel Consumption (LP) | 5.4 gal/hr (full load) 3.4 gal/hr (half load) |
| Fuel Type | Liquid Propane or Natural Gas |
Manual
User's Manual
Spec Sheet
