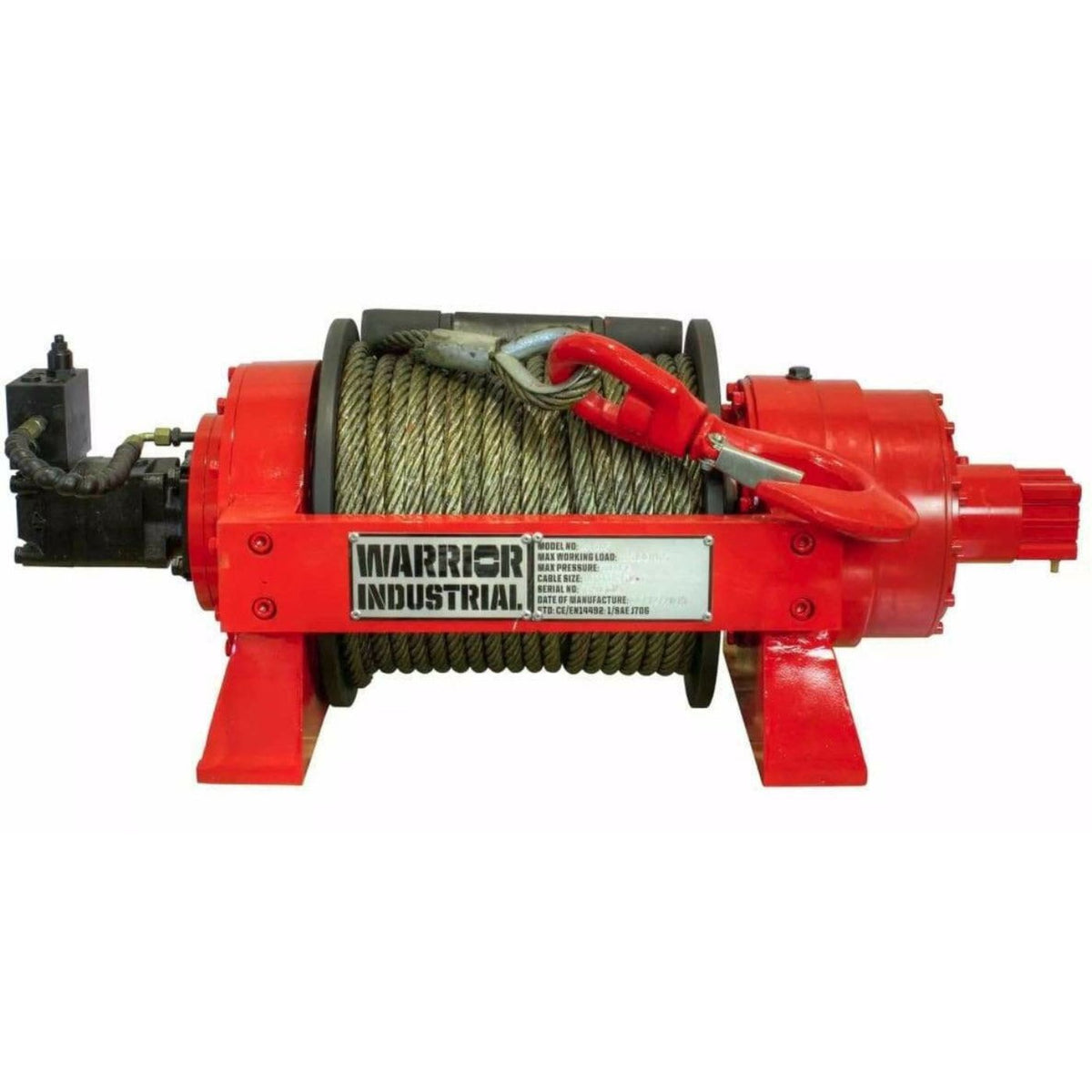

DK2 33,000LB JP HYDRAULIC WINCH
THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.
BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.
These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
Features
-
Full float heavy duty planetary gearing
-
Multi disc friction brake
-
High torque industrial motor
-
Air and manual clutch operation
-
Heavy duty rope tensioner as standard
-
Minimum 10:1 rope/drum ratio
-
Balance valve as standard
Specification
| ITEM NUMBER | 15TJP |
|---|---|
| RATED LINE PULL | 33069 LBS (15000 KG) |
| GEARING | 36:1 |
| BRAKING ACTION | AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH | 210 x 340mm (8.26 x 13.39') |
| CABLE - DIAMETER x LENGTH | 22mm x 50m (0.87' x 164') |
| DIMENSIONS | 1077 x 640 x 420mm (42.4 x 25.1 x 16.5') |
| MOUNTING PATTERN | 522mm x 180 / 280mm (20.5' x 7 / 11') |
| WEIGHT | 320 KG (705 LBS) |
| CERTIFICATION | CE CERTIFIED |
| MAX FLOW L/MIN | 110 L/MIN |
| MAX PRESSURE MPA | 160 BAR |
Manual
Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our
