Feature Of This 4 Inch Chipper - OPC514
DK2 manufactures High-performance, feature-rich equipment, and the Detail K2 4 inch disk chipper is part of the team! It will chew through small trees and broken branches at 3600 rpm with 18.5 foot-pounds of torque.

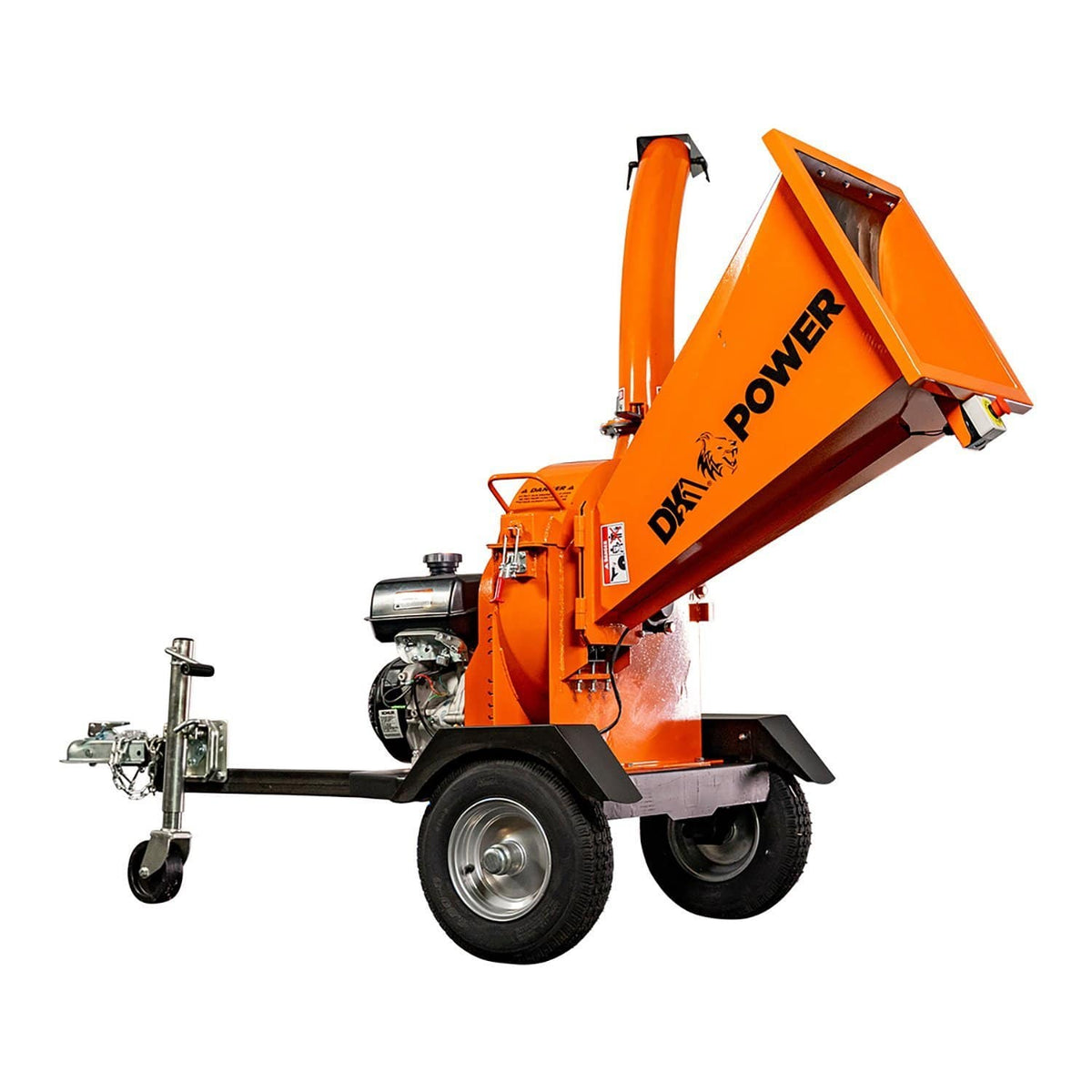

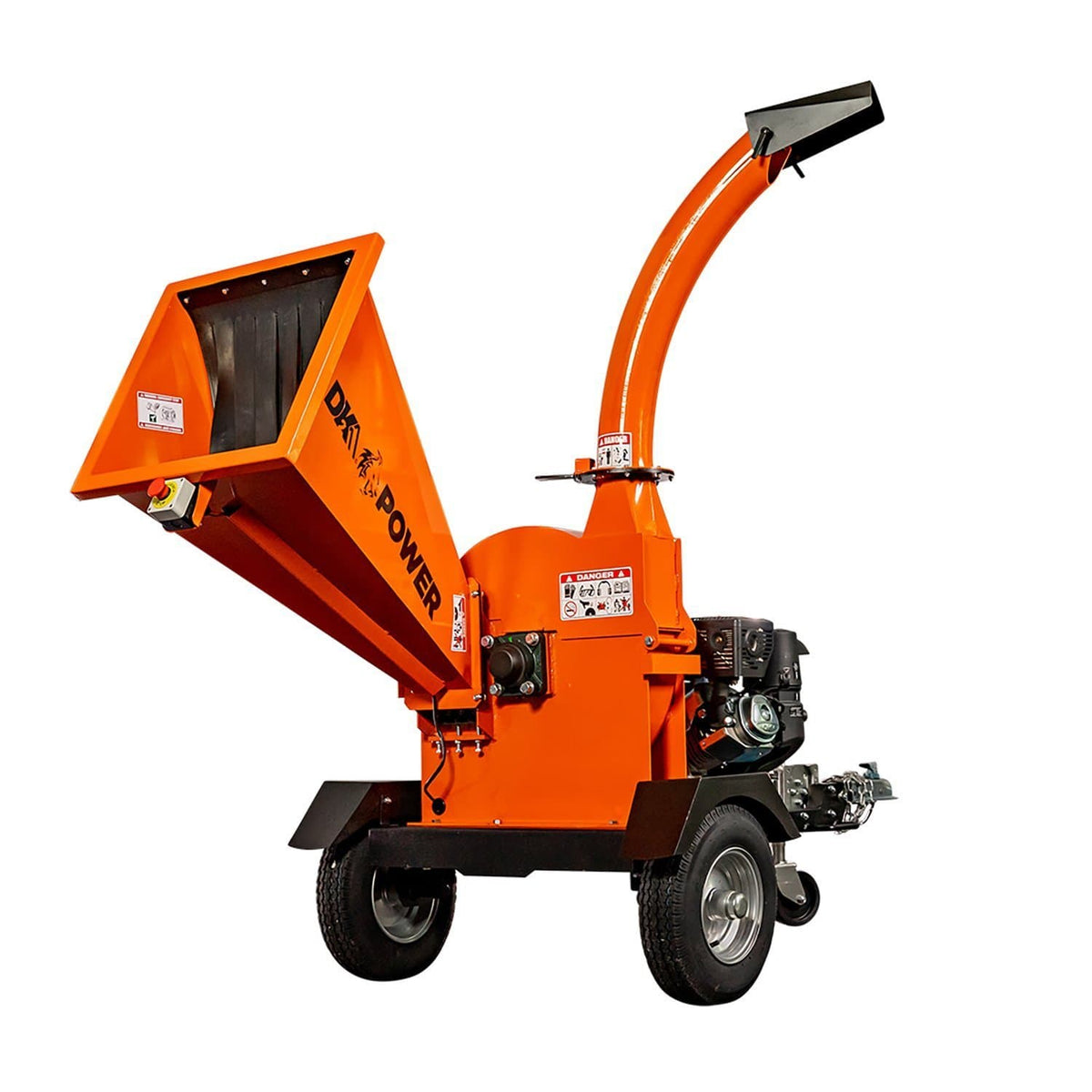

The 4 inch, high-speed disk chipper is self-contained on a trailer system with fenders. Also comes with DOT tires and rims so you can move and transport it easily.

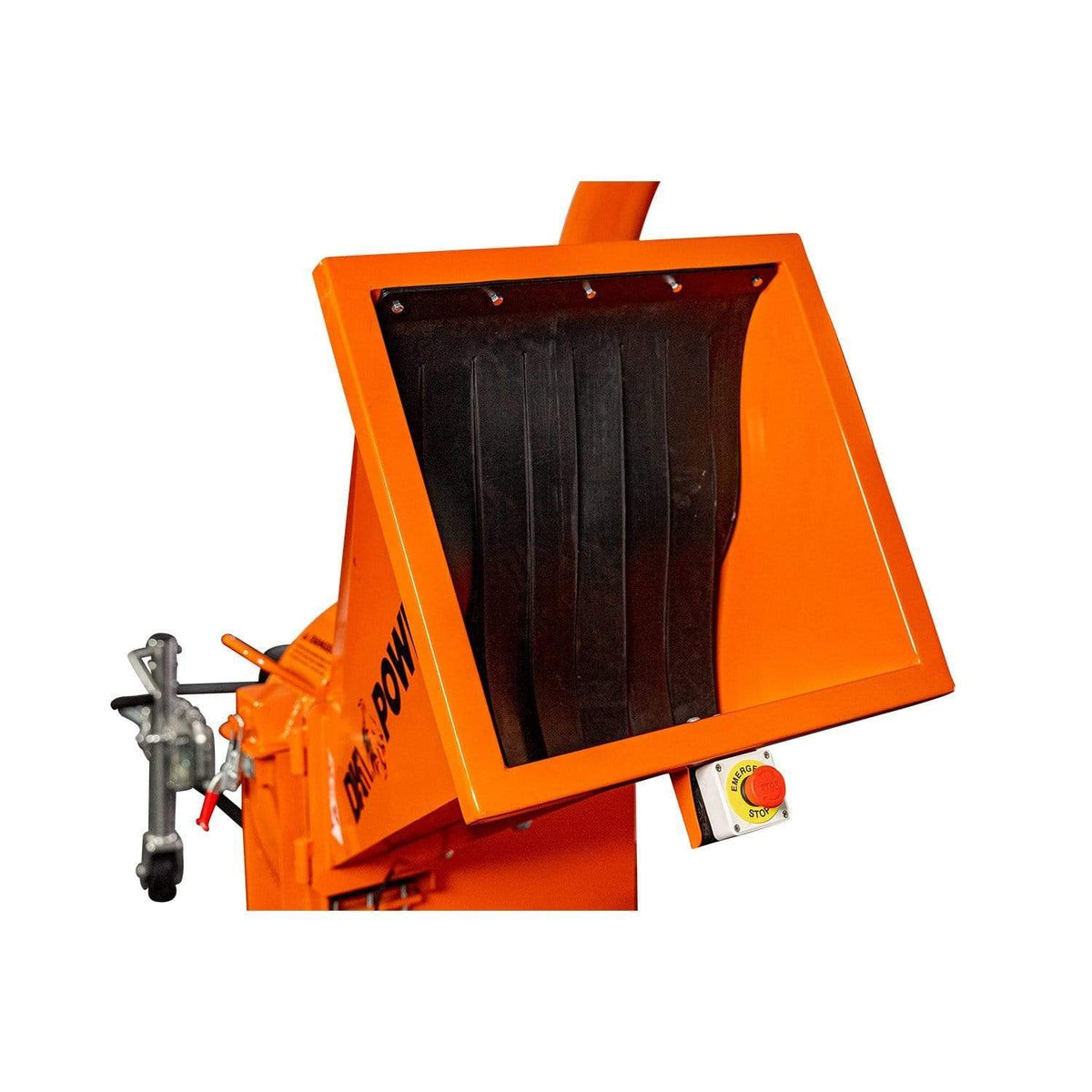

It includes an auto-adjusting feed chamber that can handle trees and branches up to 4.38 inches in diameter while the chute is adjustable to pickup height and can be rotated to put the chips exactly where you need them whether in the yard or in the back of your truck. No tools are necessary!

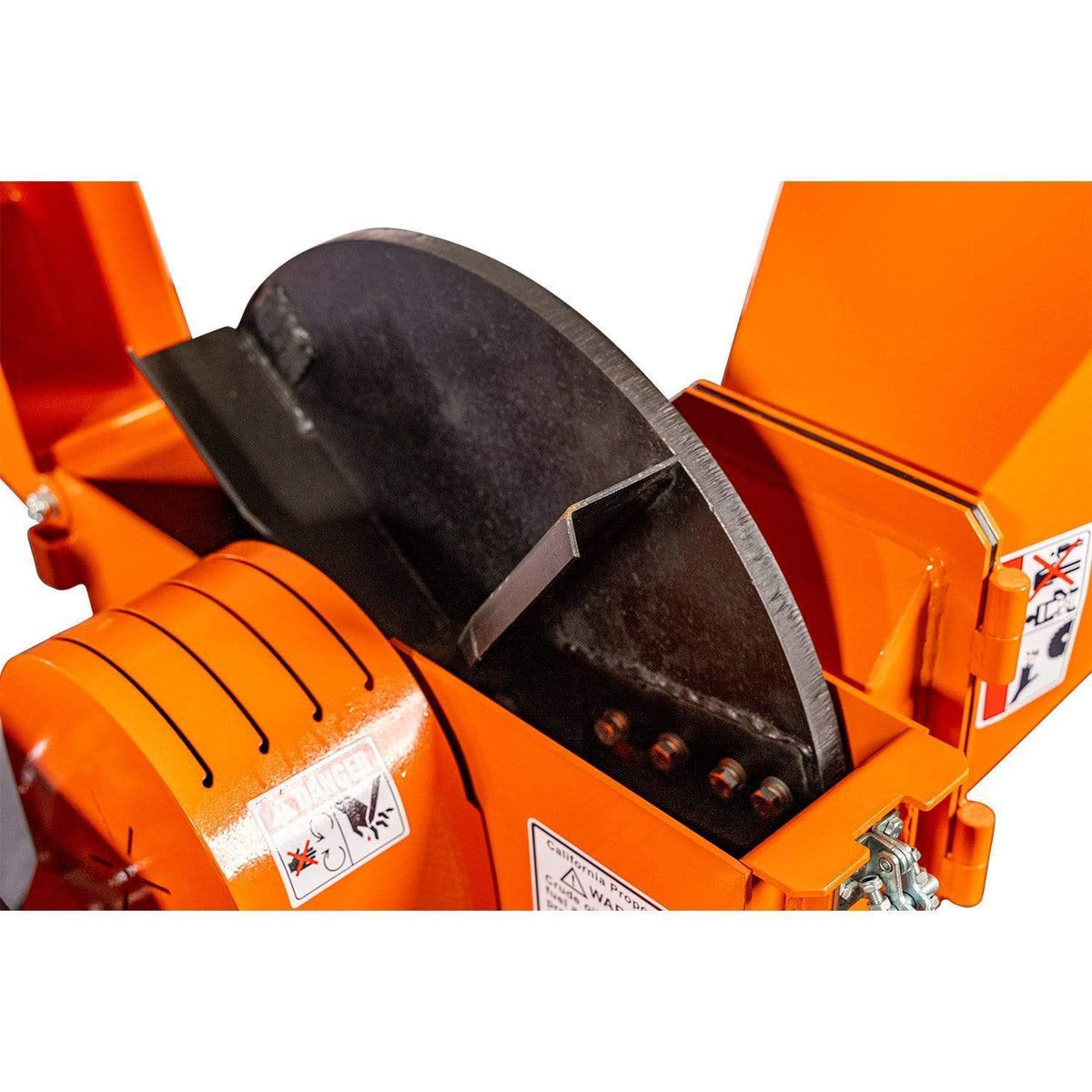

The cutting chamber also includes a quick latch for easy access to clean or remove debris
A great machine for the money that can be easily transported to your job site!
Key Features
- Max Output: 14 HP
- Blade Speed: 3600 RPM
- Chipping Capacity: 4.38 inches
- Kohler Command Pro, 14HP CH440 with 18.5 ft-lbs of torque

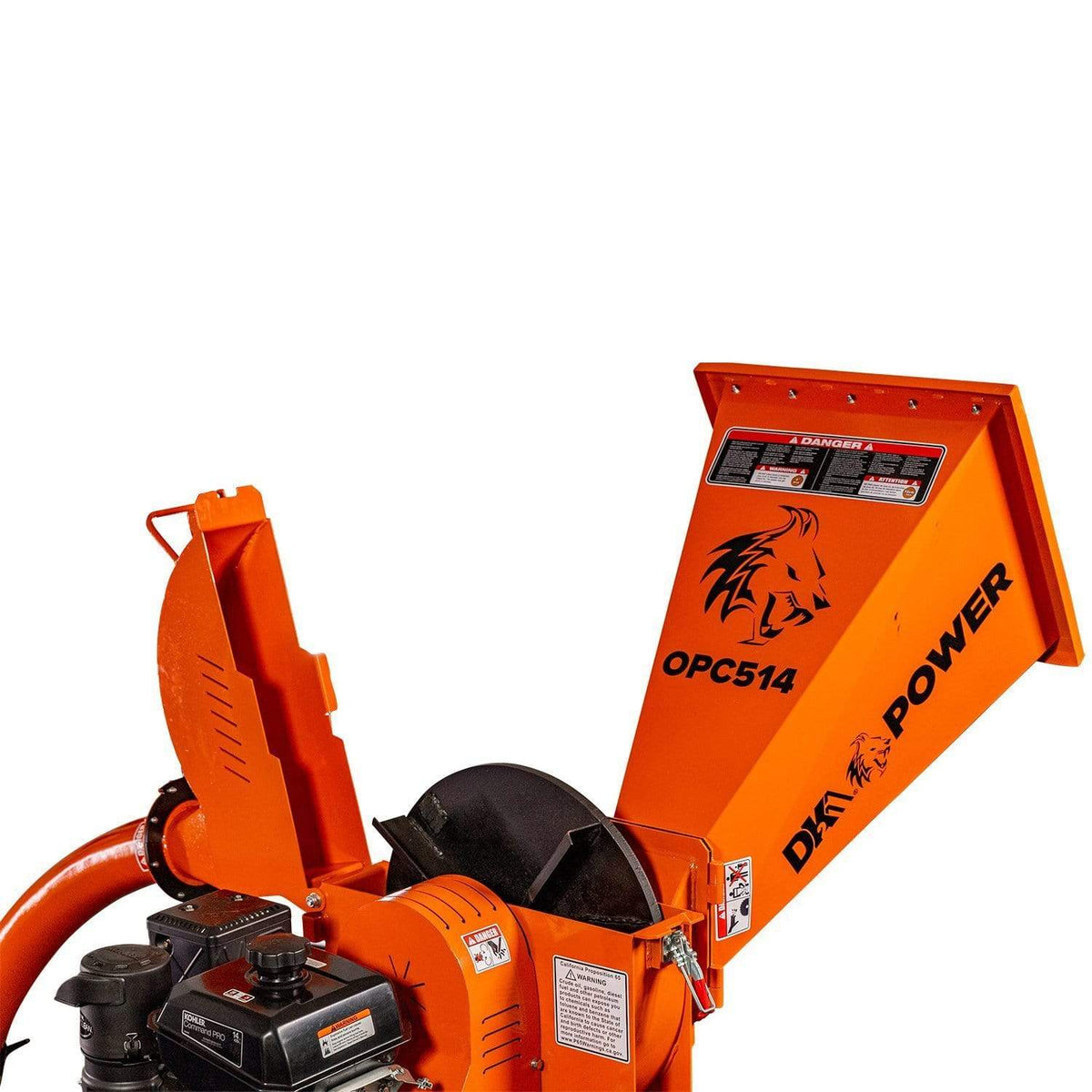

- Hinged Cutting Chamber for easy access

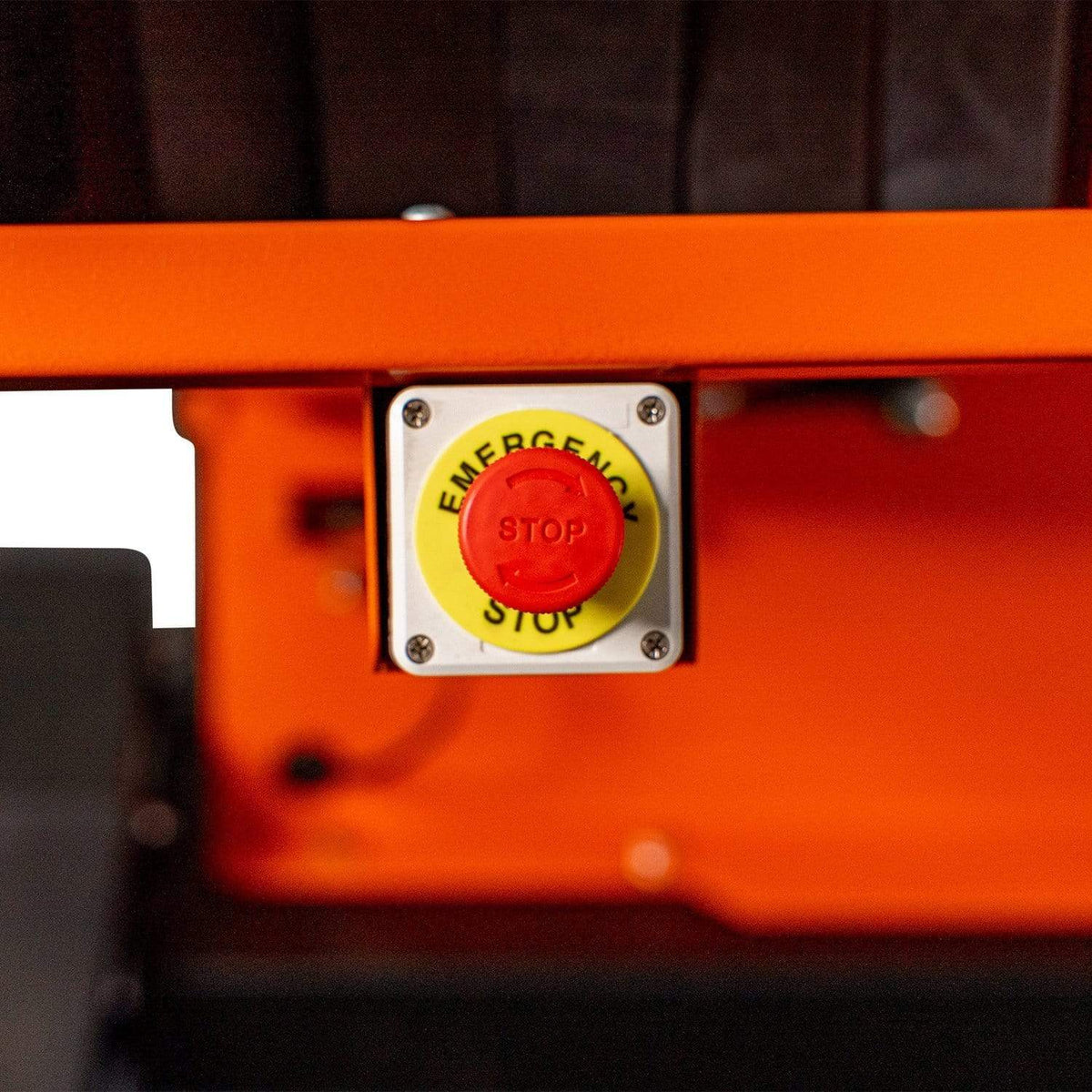

- Safety E-stop on feed chute for quick emergency shutdown
- Dual cutters and fast blade feeding

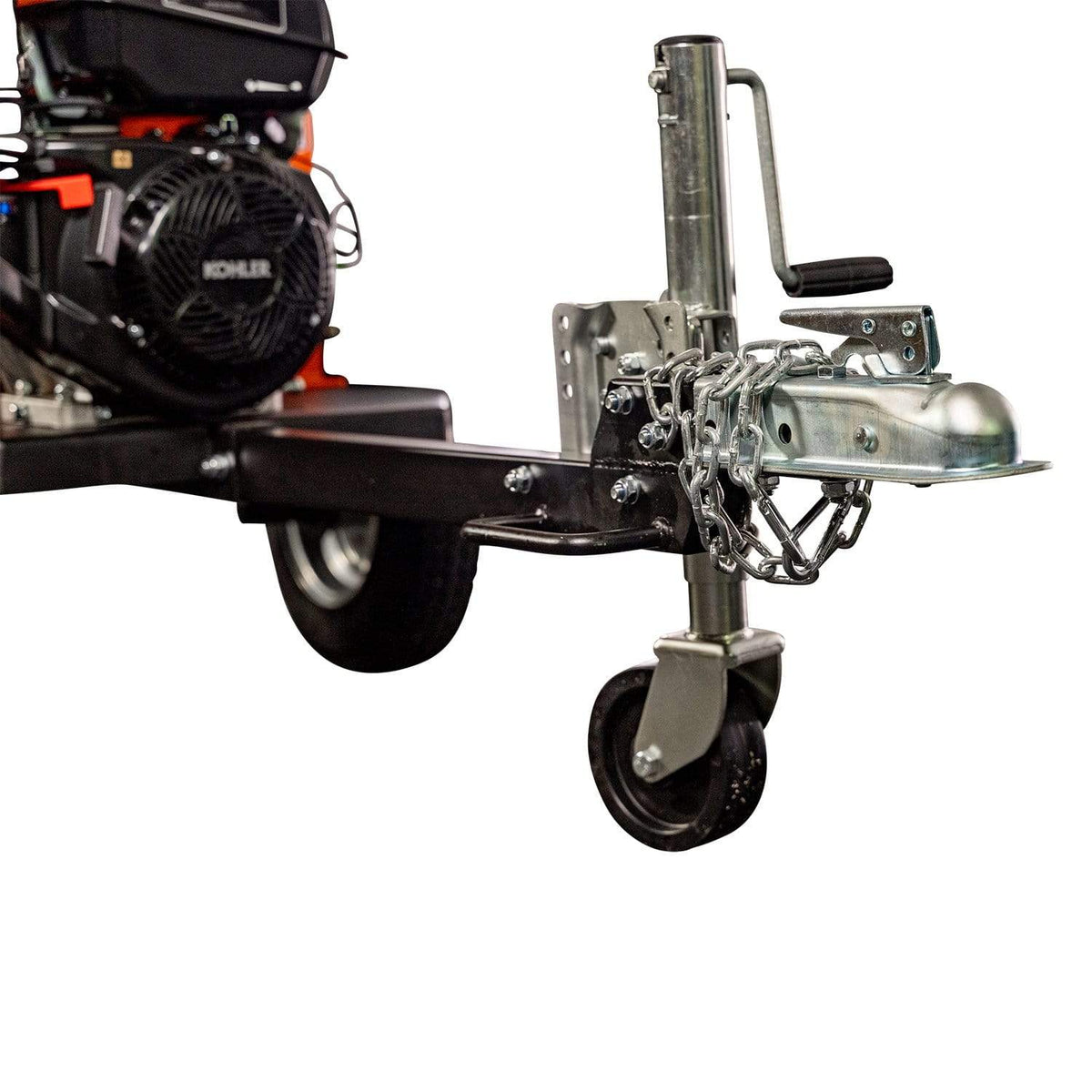

- Full trailer with fenders and dolly
- Quad chip expulsion wings
- Crated Dimensions: 41' x 30' x 49'
- 3 year Kohler engine warranty, 1 Yr DK2 equipment warranty
Specification
ENGINE MODEL | KOHLER CH440 |
---|---|
ENGINE | 14 HP KOHLER COMMAND PRO |
RATED POWER | 14 HP |
RATED SPEED | 3600 RPM |
TIRES | D.O.T. RATED 16.1' 4.8-8 TIRES(NOT HIGHWAY TOWABLE) | CAN BE TOWED UP TO 25 MPH |
TREE DIAMETER | UP TO 4.5' DIAMETER TREES |
CUTTING METHOD | DISK |
CUTTER DISK | DUAL BELT DRIVE 17mm x 900mm Li (0.67' x 35.4' INNER DIAMETER) CENTRIFUGAL CLUTCH |
WEIGHT | 573 LB |
DIMENSIONS | 89.4' x 39.4' x 65.2' |
SHIPPING WEIGHT | 595 LB |
SHIPPING DIMENSIONS | 41.4' x 30.4' x 49.3' |
WARRANTY | 3 YR KOHLER COMMERCIAL ENGINE - 1 YR DK2 CHASSIS |
What Our Experts Think
- Powerful Chipping Performance: The DK2 4-Inch Wood Chipper easily handles branches up to 4 inches in diameter, making yard cleanup a breeze.
- Trailer System Included: Comes with a built-in trailer for easy transport, enhancing mobility and convenience.
- Durable Design: Built with heavy-duty steel, ensuring long-lasting use and reliable performance.
- Efficient Operation: High-powered engine delivers consistent, fast chipping for both residential and light commercial use.
- Easy to Use: Simple controls and quick setup, perfect for both novice and experienced users.
- Compact and Portable: Its compact size and trailer system make it easy to store and transport.
Q&A
Q: What is the DK2 4 Inch Wood Chipper with Trailer System?
A: The DK2 4 Inch Wood Chipper is a powerful tool for chipping branches up to 4 inches in diameter, equipped with a convenient trailer system for easy transport.
Q: What can the DK2 Wood Chipper handle?
A: This chipper efficiently handles branches, twigs, and small trees up to 4 inches in diameter, turning them into mulch for easy disposal or use in landscaping.
Q: Does the DK2 Wood Chipper come with a trailer?
A: Yes, the chipper is mounted on a durable trailer system, making it easy to tow and transport to various job sites.
Q: Is the DK2 4 Inch Wood Chipper easy to use?
A: Yes, the chipper is designed for user-friendly operation, with simple controls and a robust engine for reliable performance.
Q: What type of engine does the DK2 Wood Chipper have?
A: The DK2 4 Inch Wood Chipper is powered by a strong engine that ensures efficient chipping for both residential and commercial use.
Maintenance Tips
-
Clean After Use: Remove all debris, sap, and wood chips from the chipper and trailer to prevent buildup and corrosion.
-
Inspect Blades: Regularly check the blades for sharpness and wear. Sharpen or replace them as needed to maintain efficiency.
-
Lubricate Moving Parts: Apply grease to the chipper’s moving parts, including bearings and the drum, to ensure smooth operation.
-
Check the Trailer: Inspect the trailer for any loose bolts, tire wear, or damage. Ensure the hitch and brakes are functioning properly.
-
Fuel System Care: Drain any remaining fuel at the end of the season to prevent clogging. Store fuel in a cool, dry place.
-
Engine Maintenance: Change the engine oil, replace the air filter, and inspect spark plugs as per the manufacturer's recommendations.
