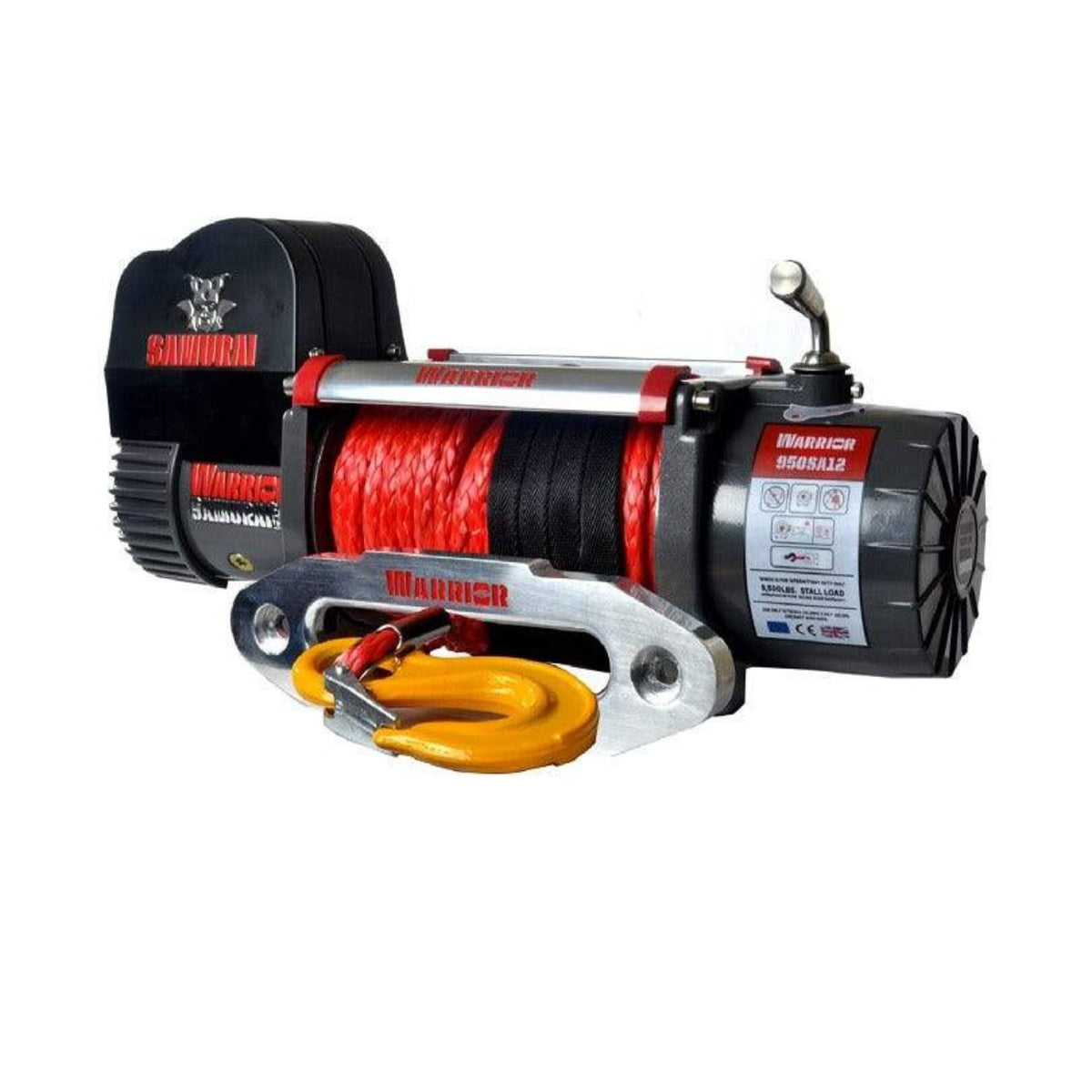

DK2 9,500LB SAMURAI SERIES (SYNTHETIC ROPE)
SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS
Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.
Features
-
All brass (no corrosion) series wound motor
-
Double sealed motor
-
Sealed waterproof contactor
-
Steel contactor cover for added protection
-
Double sealed drum (gearbox/motor)
-
Sealed 3 stage planetary gears
-
Stainless steel 4 way fairleads
-
Integrated wireless remote (12V only)
Specification
| ITEM NUMBER | S9500-SR |
|---|---|
| RATED LINE PULL | 9500 LBS (4500 KG) |
| MOTOR | 12V: 4.6 HP / 3.2 KW |
| GEARING | 230:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 223mm (2.48 x 8.78') |
| CABLE - DIAMETER x LENGTH | 9.5mm x 25m (0.37' x 82') |
| DIMENSIONS | 540 x 160 x 219mm (21.25 x 6.3 x 8.62') |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49') |
| WEIGHT | 32 KG (71 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 9500 (4309) |
| 2 | 7706 (3495) |
| 3 | 6482 (2940) |
| 4 | 5593 (2537) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 19.6 (6) | 80 • 70 |
| 3000 (1361) | 2.5 (3.8) | 170 • 140 |
| 6000 (2722) | 2.5 (3.8) | 260 • 210 |
| 9500 (4309) | 6.4 (1.9) | 380 • 270 |
Manual
