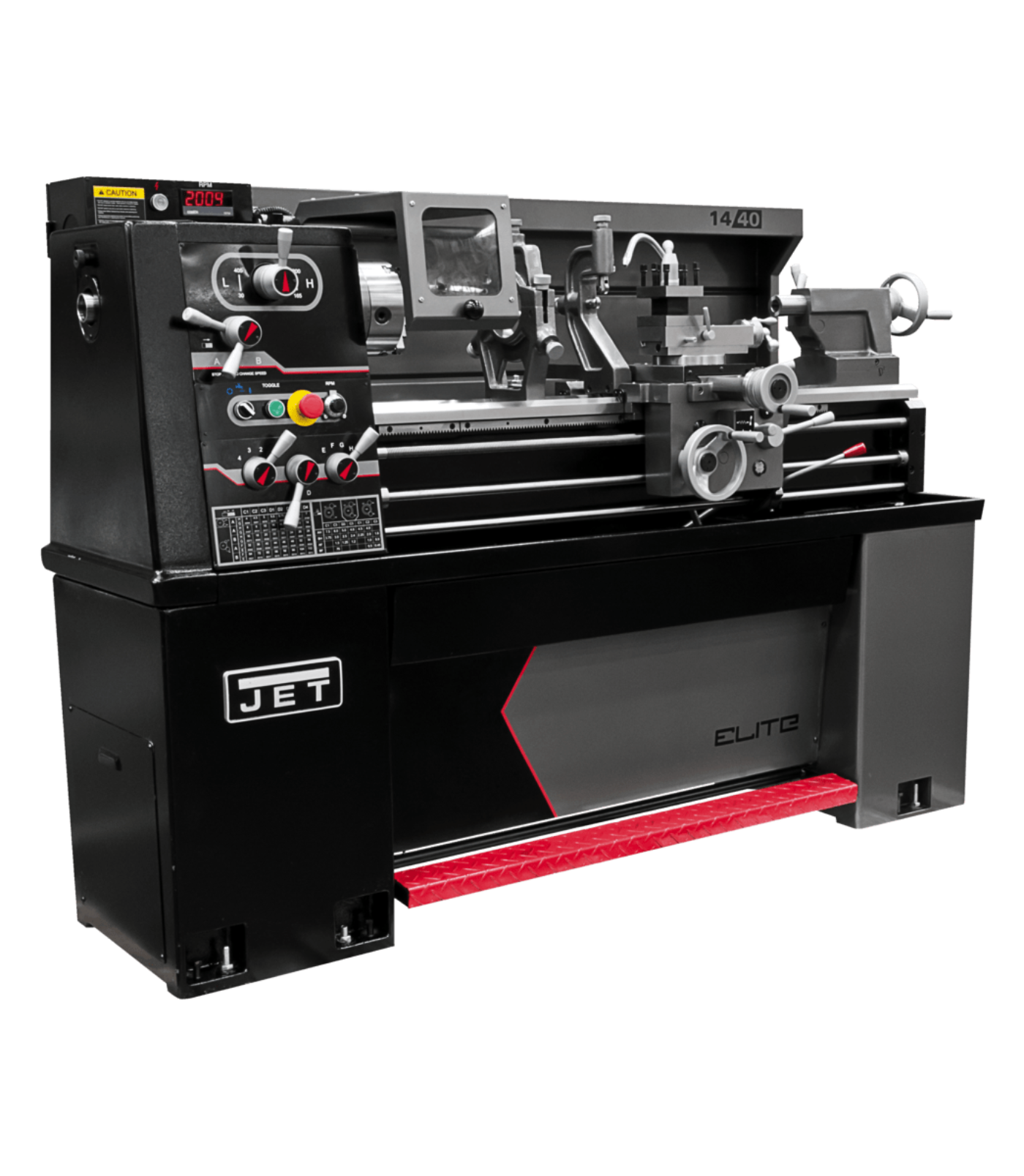

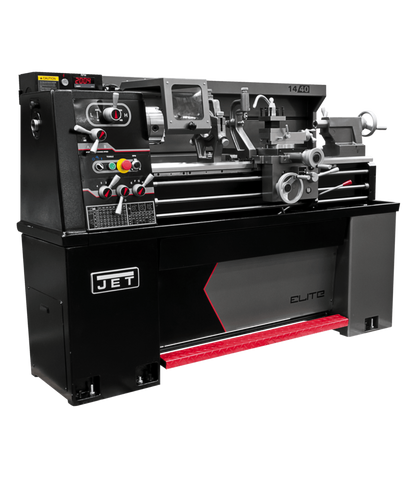

JET Elite Lathe E-1440VS with ACU-RITE 303 DRO with Taper Attachment and Collet Closer - JT9-892464

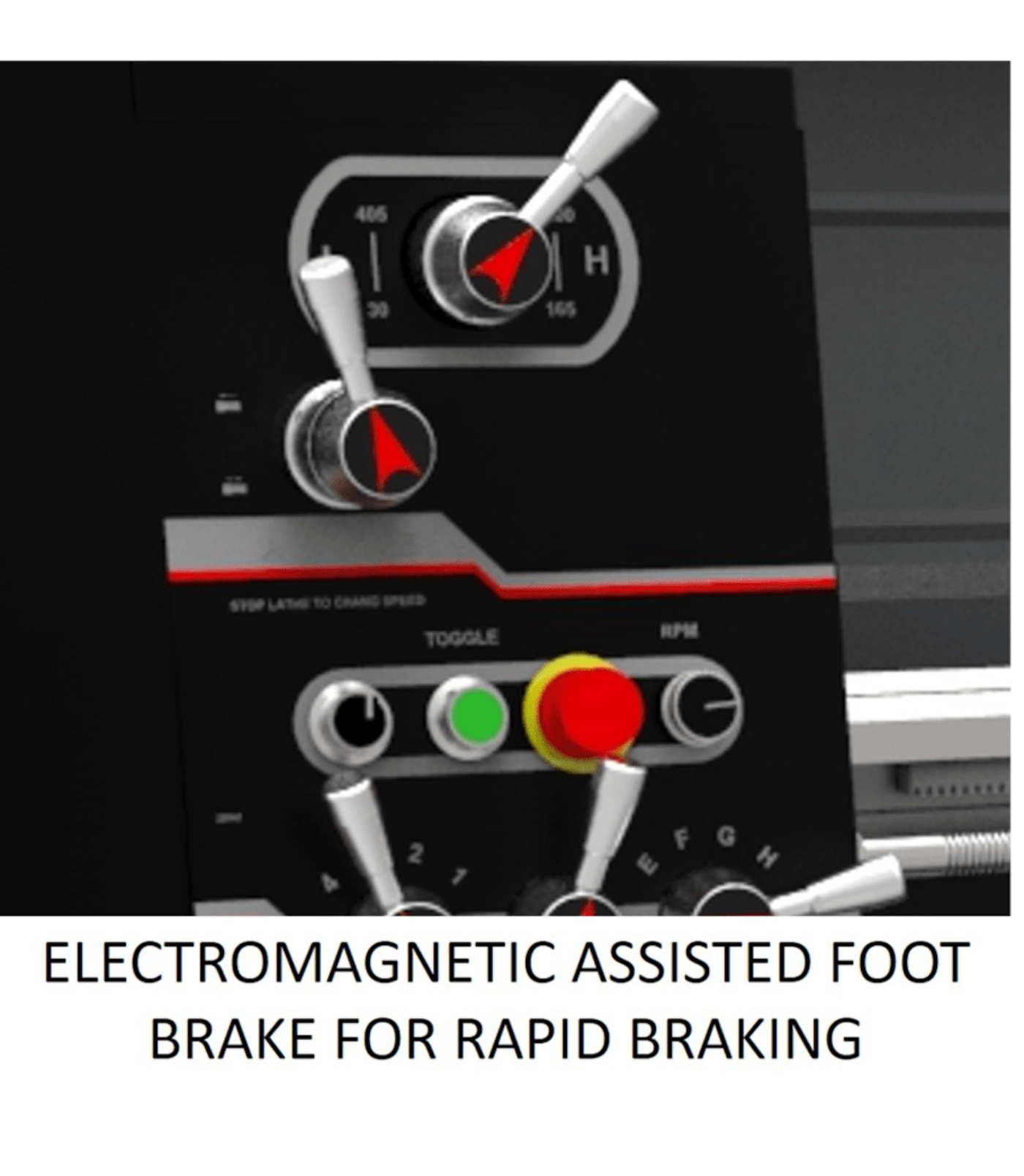

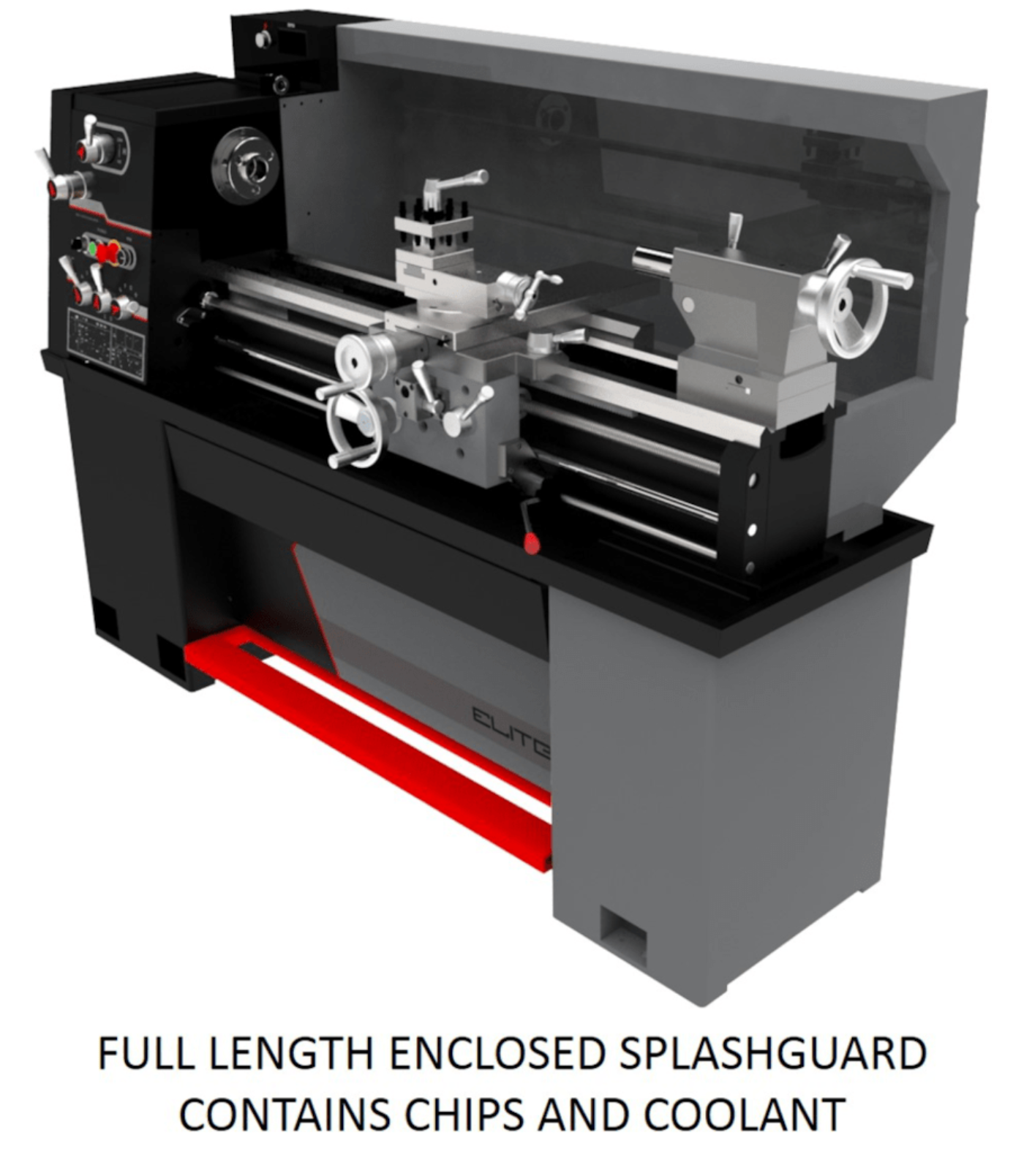

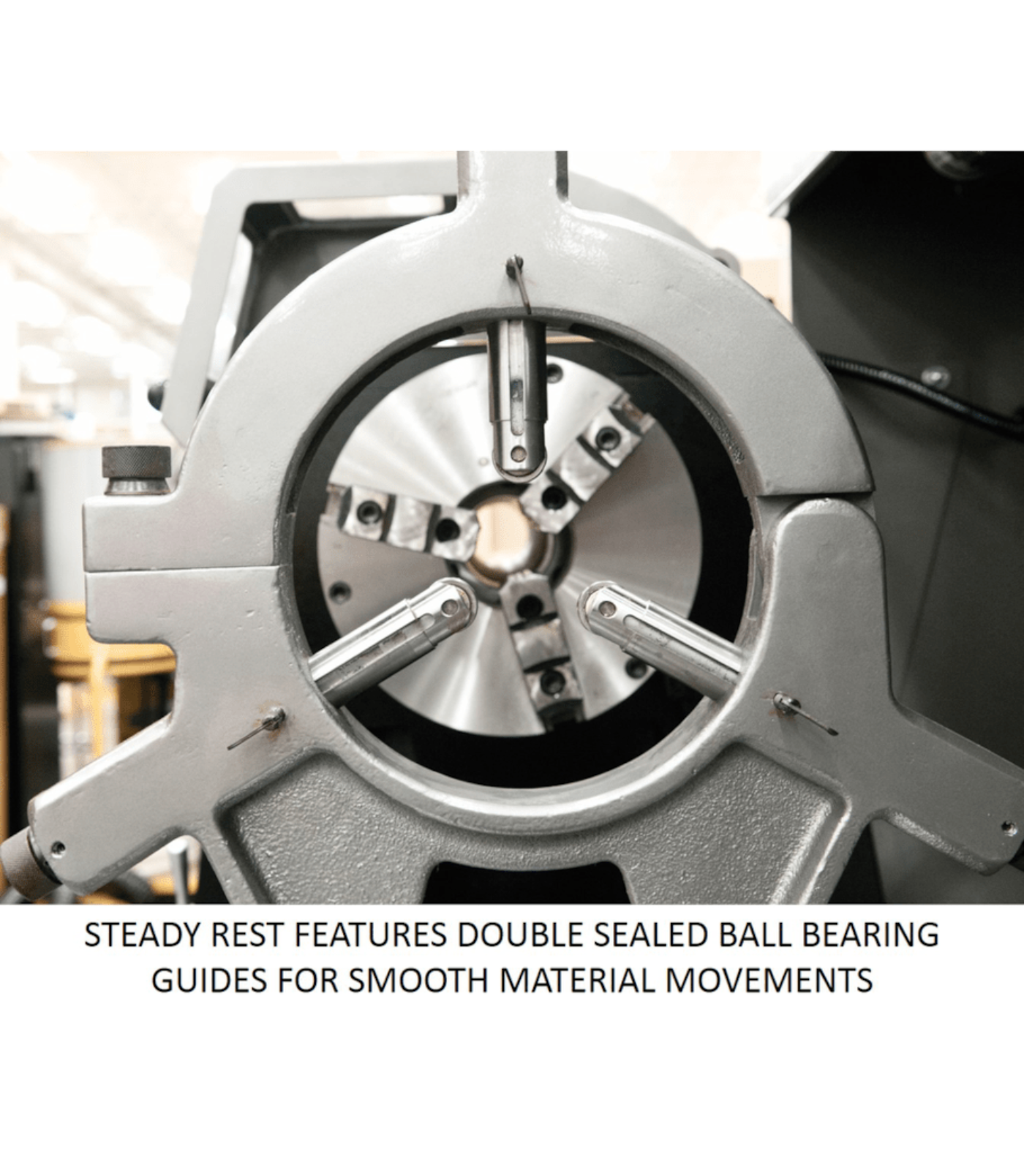

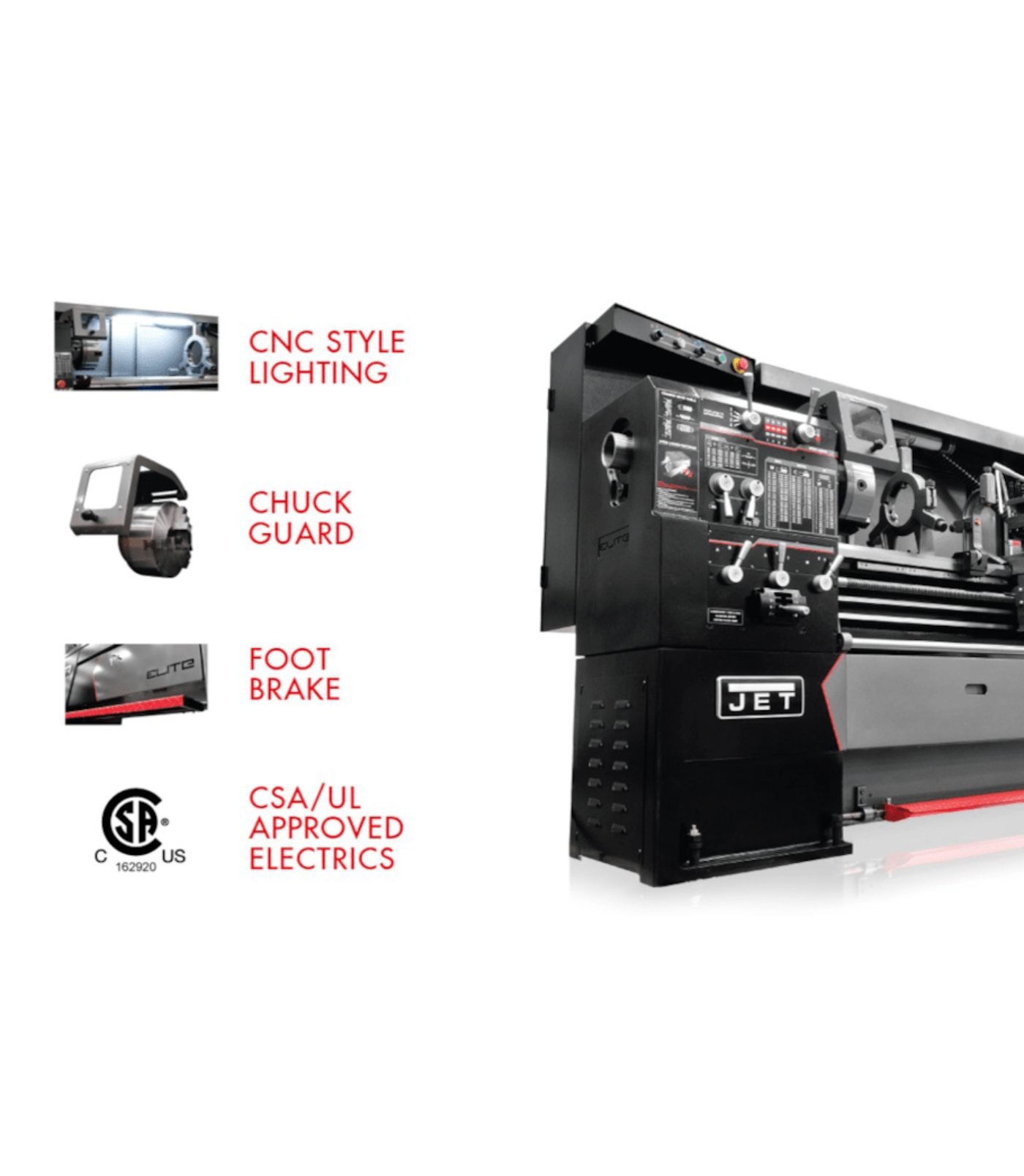

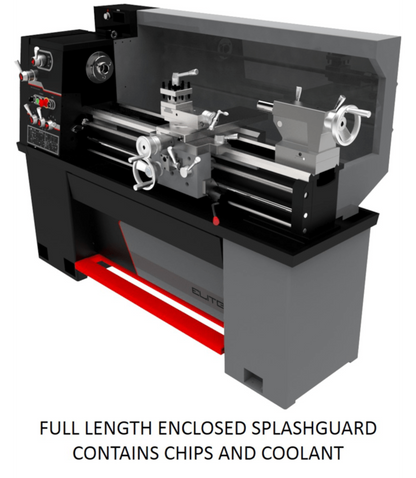

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Features
- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety

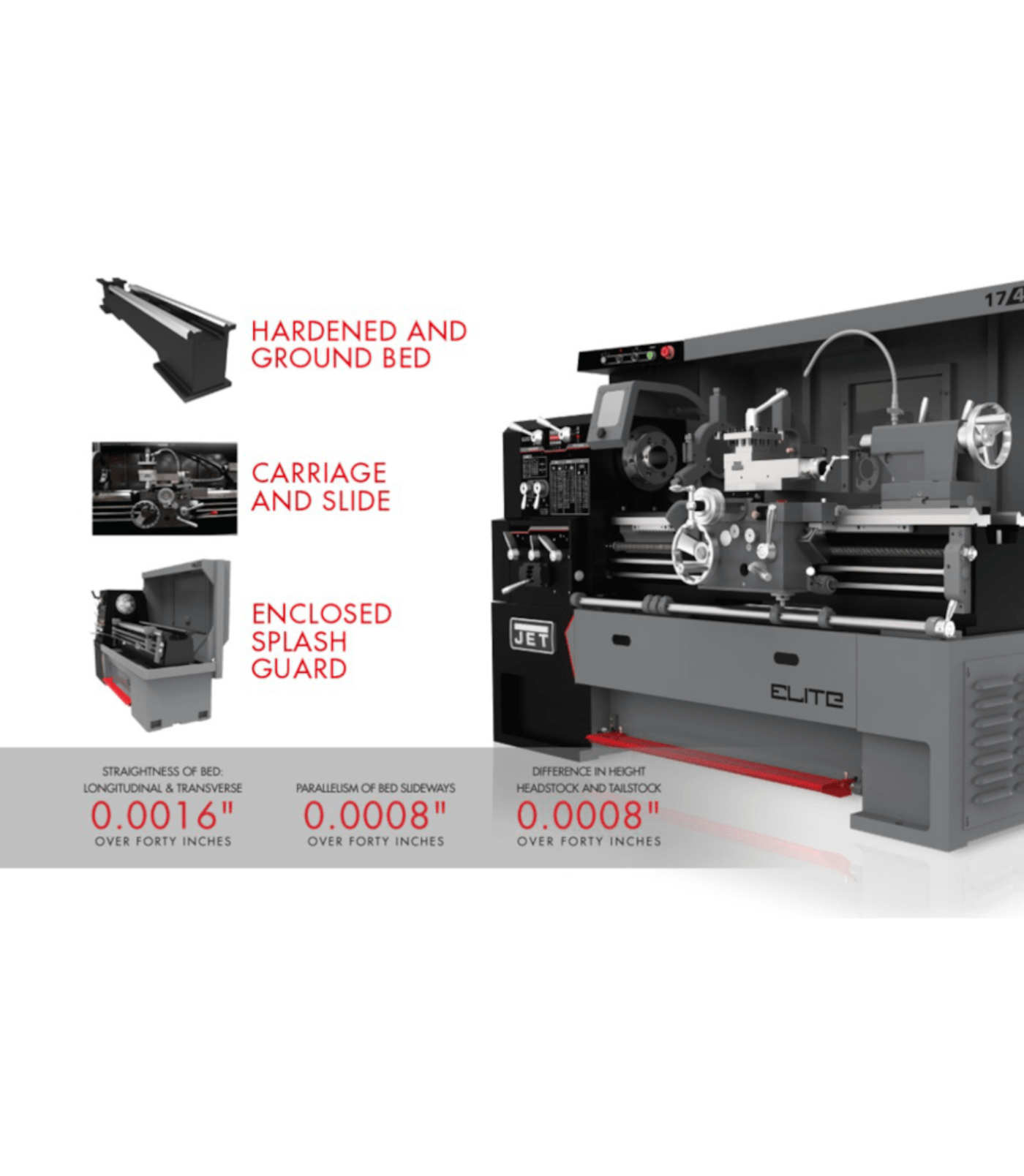

- Front facing chip pan allows easy chip removal from the front of the machine

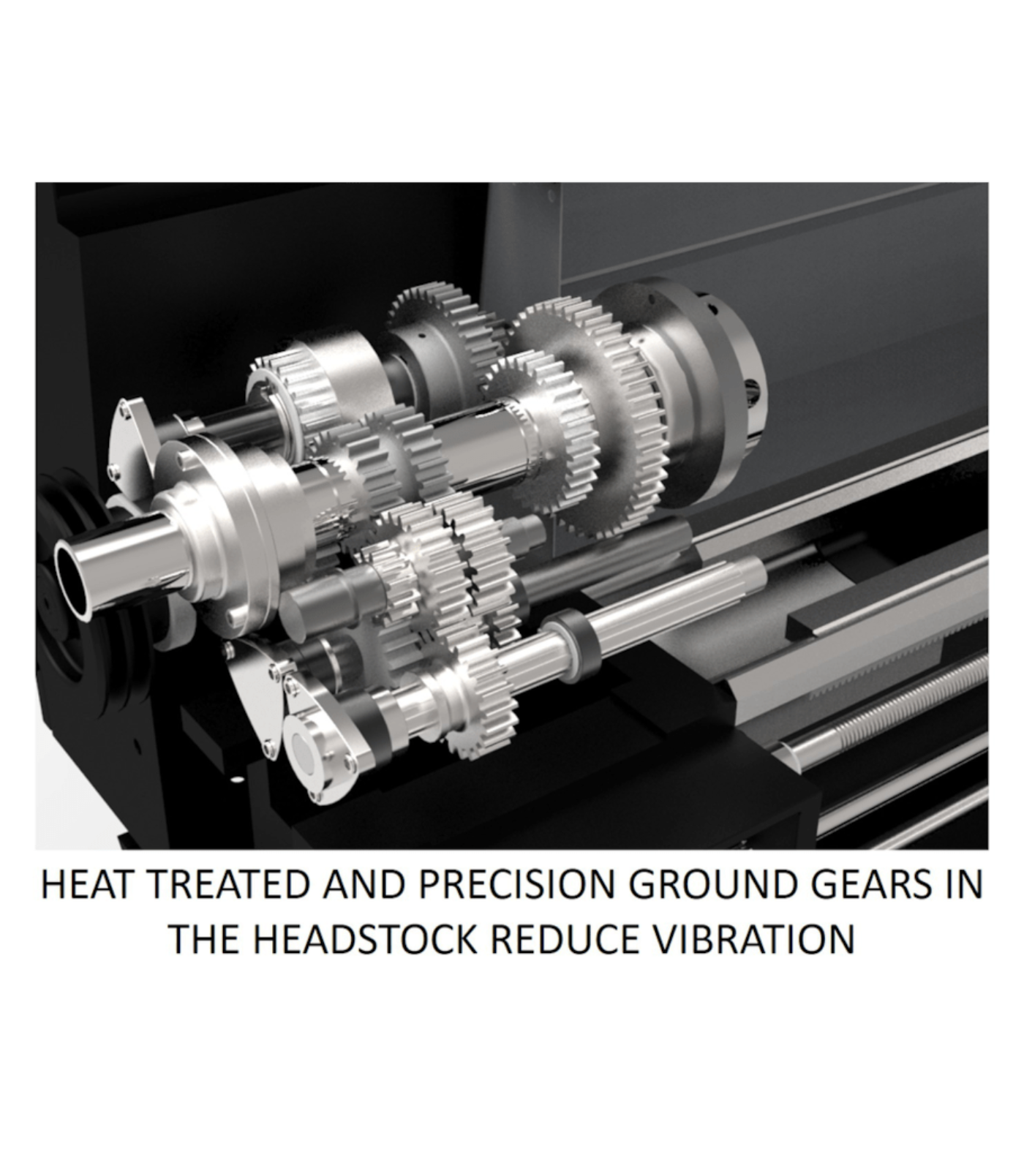

- Hardened and ground gears in headstock reduce vibration and deflection
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Specifications
| Size |
14 x 40 |
| Style (Type) |
ELITE EVS |
| Swing Over Bed |
14 in. |
| Swing Over Cross Slide |
8-5/8 in. |
| Swing Through Gap |
20 in. |
| Length of Gap |
9 in. |
| Spindle Bore |
1-1/2 in. |
| Spindle Mount |
D1-4 |
| Weight |
1,653 lbs. |
| Amperage Draw @ 230V 3Ph |
9 A |
| Spindle Taper with Sleeve |
MT5 |
| Range of Spindle Speeds |
0 – 2,200 RPM |
| Number of Longitudinal & Cross Feed Rates |
80 |
| Range of Longitudinal Feeds (IPR) |
0.0012 – 0.0294 |
| Range of Cross Feeds (IPR) |
0.0003 – 0.01 |
| Number of Inch Threads |
40 |
| Range of Inch Threads (TPI) |
4 – 112 |
| Number of Metric Threads |
22 |
| Range of Metric Threads (mm) |
0.45 – 7.5 |
| Compound Slide Travel |
4 in. |
| Cross Slide Travel |
7 in. |
| Motor |
3 HP, 230V, 3Ph |
| Tailstock Spindle Travel |
5 in. |
| Taper in Tailstock Spindle |
MT3 |
| Steady Rest Capacity |
1/4 – 2-3/4 in. |
| Width of Bed |
8-1/2 in. |

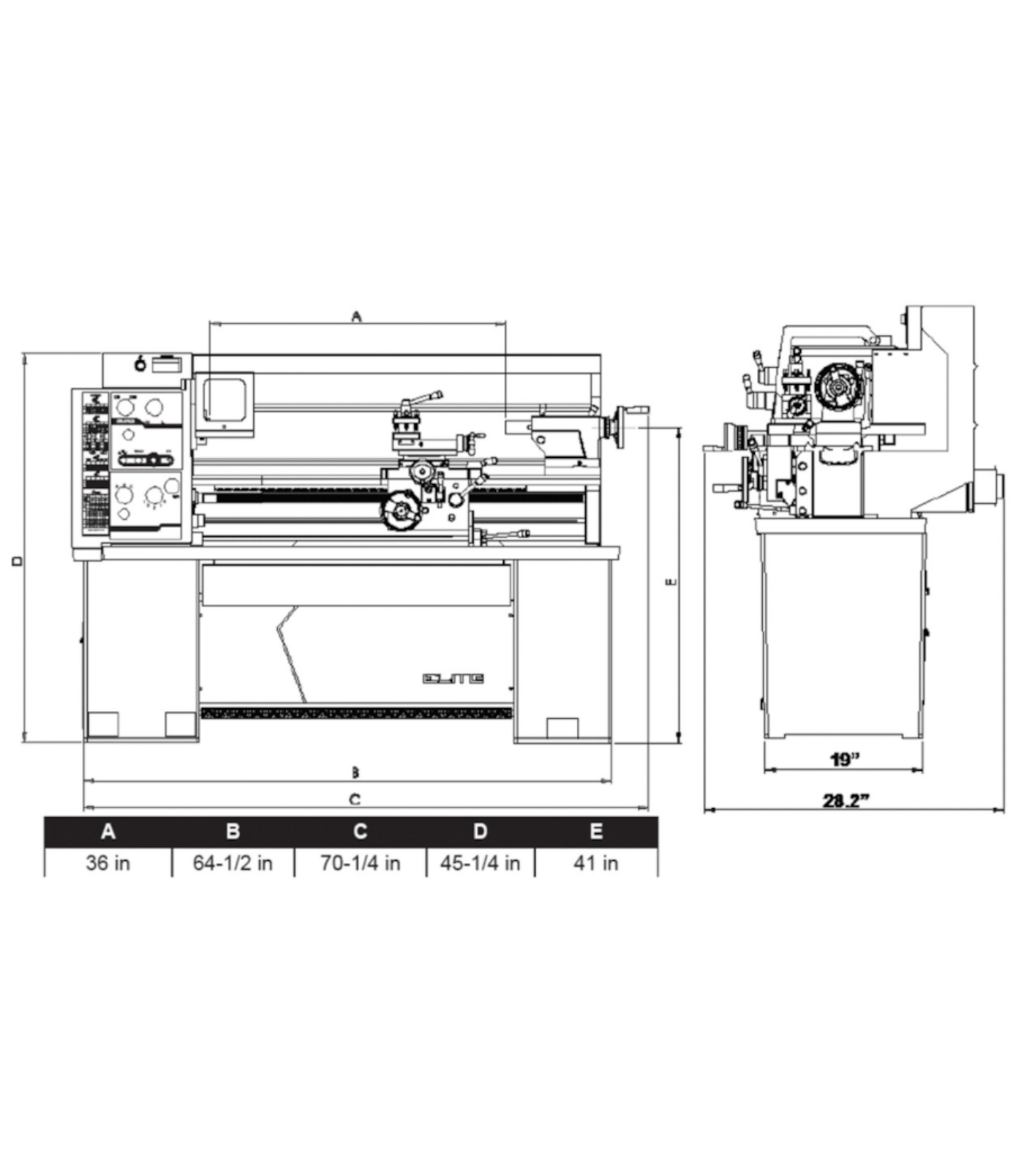

| Overall Dimensions (L x W x H) |
77 x 30 x 58 in. |
| Drive |
EVS |
What our Experts Think
-
Precision Engineering: Variable speed control with ACU-RITE 203 DRO ensures accurate, repeatable machining.
-
Enhanced Versatility: Taper attachment supports complex turning, while collet closer speeds up secure workholding.
-
Heavy-Duty Build: Rugged cast-iron construction minimizes vibration and maximizes stability.
-
User-Friendly Design: Digital readout and ergonomic controls streamline operation for professionals.
-
Industrial-Grade Reliability: Perfect for machine shops requiring durability, precision, and efficiency.
Q&A
Q: What is the JET Elite E-1340VS Lathe?
A: A precision variable speed metal lathe equipped with the ACU-RITE 203 digital readout, taper attachment, and collet closer for advanced machining versatility.
Q: What makes it unique?
A: Its electronic variable speed drive, precision-ground bedways, DRO for accurate digital measurement, taper attachment for angled cuts, and collet closer for quick workholding deliver maximum accuracy and efficiency.
Q: Where can it be used?
A: Perfect for machine shops, tool rooms, fabrication facilities, and industrial production environments.
Q: What style of work does it suit?
A: Precision turning, threading, facing, boring, and taper cutting on metals and alloys.
Q: What materials is it made from?
A: Heavy-duty cast iron base with hardened and ground components for long-term durability and vibration-free stability.
Maintenance Tips
-
Remove chips and debris from bedways, carriage, and leadscrews after every use.
-
Lubricate gears, bearings, and sliding components per manufacturer’s schedule.
-
Keep ACU-RITE 203 DRO display and sensors clean for accurate readings.
-
Inspect taper attachment and collet closer regularly for precise, smooth operation.
-
Check belts, gibs, and fasteners for wear; cover the lathe when not in use.
