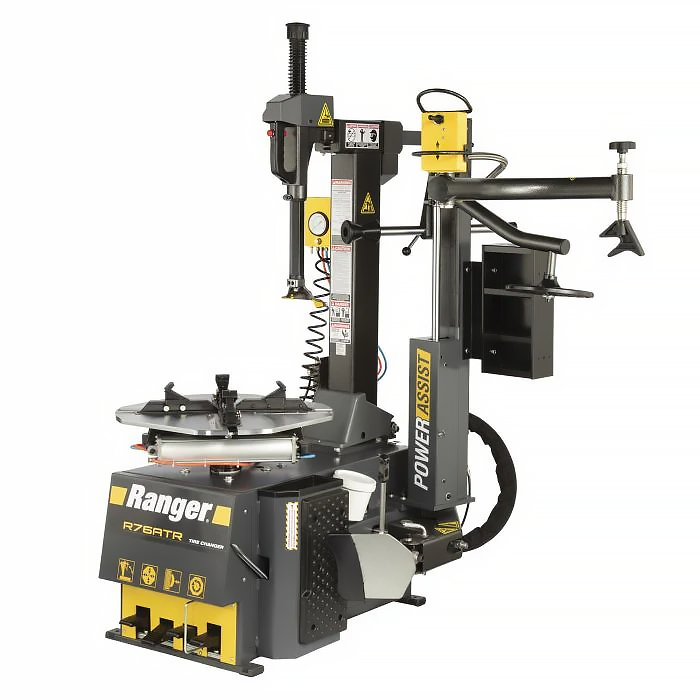

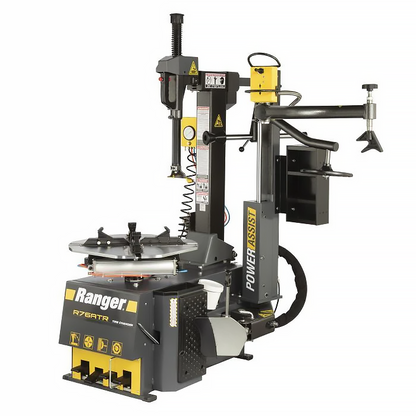

Ranger R76ATR Tilt-Back Tire Changer - Right-Tower with Single Assist

The Ranger R76ATR is designed to make tire service faster, easier, and more precise than ever. Its smart tilt-back tower allows quick access to a wide range of wheel sizes without constant adjustments, cutting downtime between jobs. The right-side assist arm provides steady support for stubborn, stiff-sidewall tires — letting technicians mount and demount with control and confidence.

With a rugged electric-hydraulic system and ergonomic layout, the R76ATR offers the perfect mix of power and simplicity for busy repair shops. Whether you’re handling standard passenger tires or performance sets, it delivers smooth, consistent performance you can count on day in and day out.

Specifications

• Shipping Weight: 970 lbs (440 kg)
• Max Tire Diameter: 43" (1,092 mm)
• Assist Type: Single-Tower Assist
• Design: Tilt-Back Tower
• Power Assist Tower: Single / Right-Side
• Motor Power: 3 HP (220 VAC, 50–60 Hz)
• Drive System: Electric / Hydraulic
• Air Pressure Required: 110–175 PSI (8–12 BAR)
• Internal Rim Clamping Range: 10"–30" (254–762 mm)
• External Rim Clamping Range: 9"–28" (229–711 mm)
• Clamping Method: 4 Clamps (Internal / External)
• Table Clamping System: Dual Pneumatic Cylinders
• Bead Breaking System: Adjustable Pneumatic Blade
• Bead Breaker Width Capacity (Demounting): 1.5"–16" (38–406 mm)
• Turntable Tire Width Capacity (Mounting): 4"–18" (102–457 mm)
• Tool Head / Vertical Shaft: Pneumatic Locking
• Bead Lifting Roller: Single / Right-Side

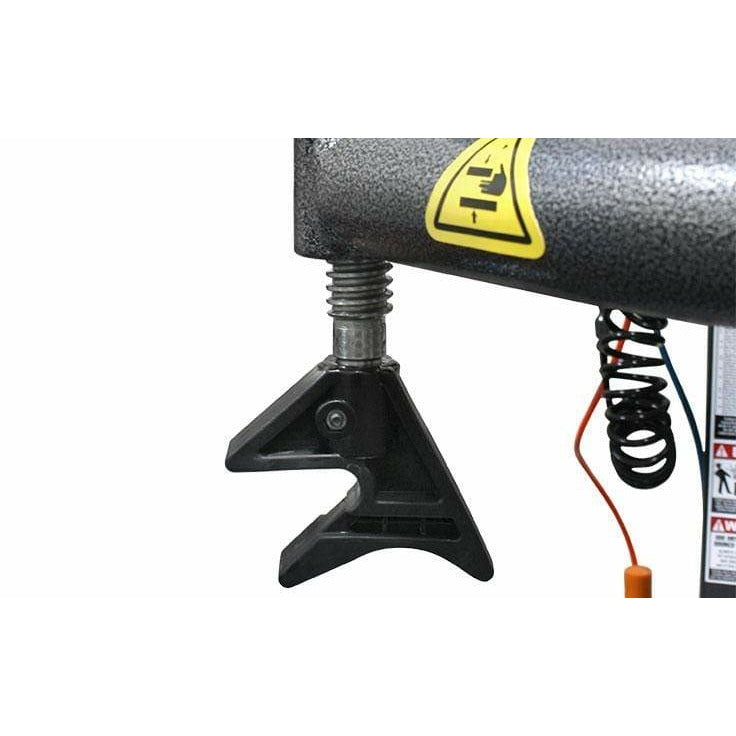

• Upper Bead Assist Roller: Single / Right-Side
• Shipping Dimensions: 45" × 73" × 51" (1,143 × 1,854 × 1,295 mm)
