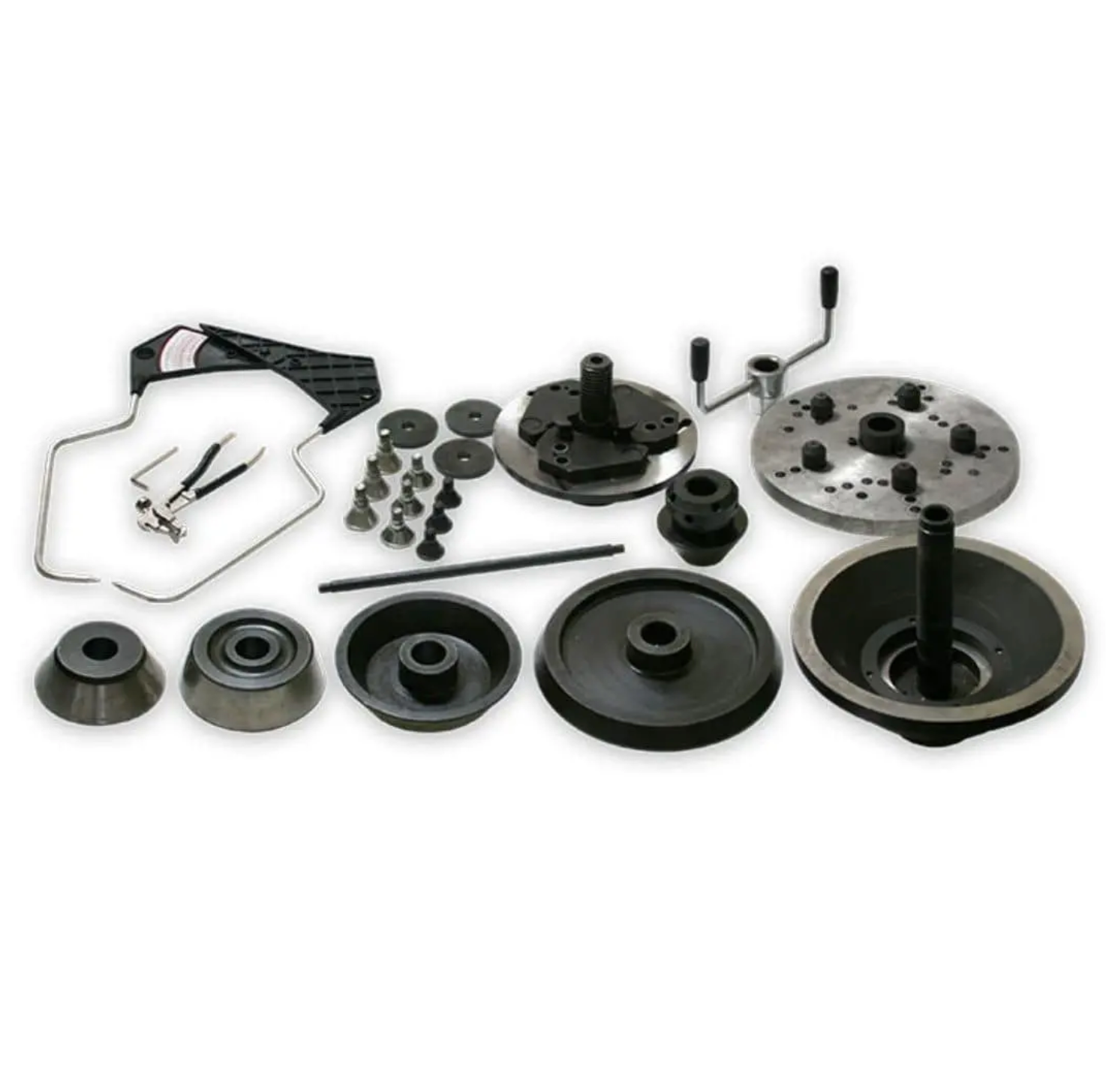

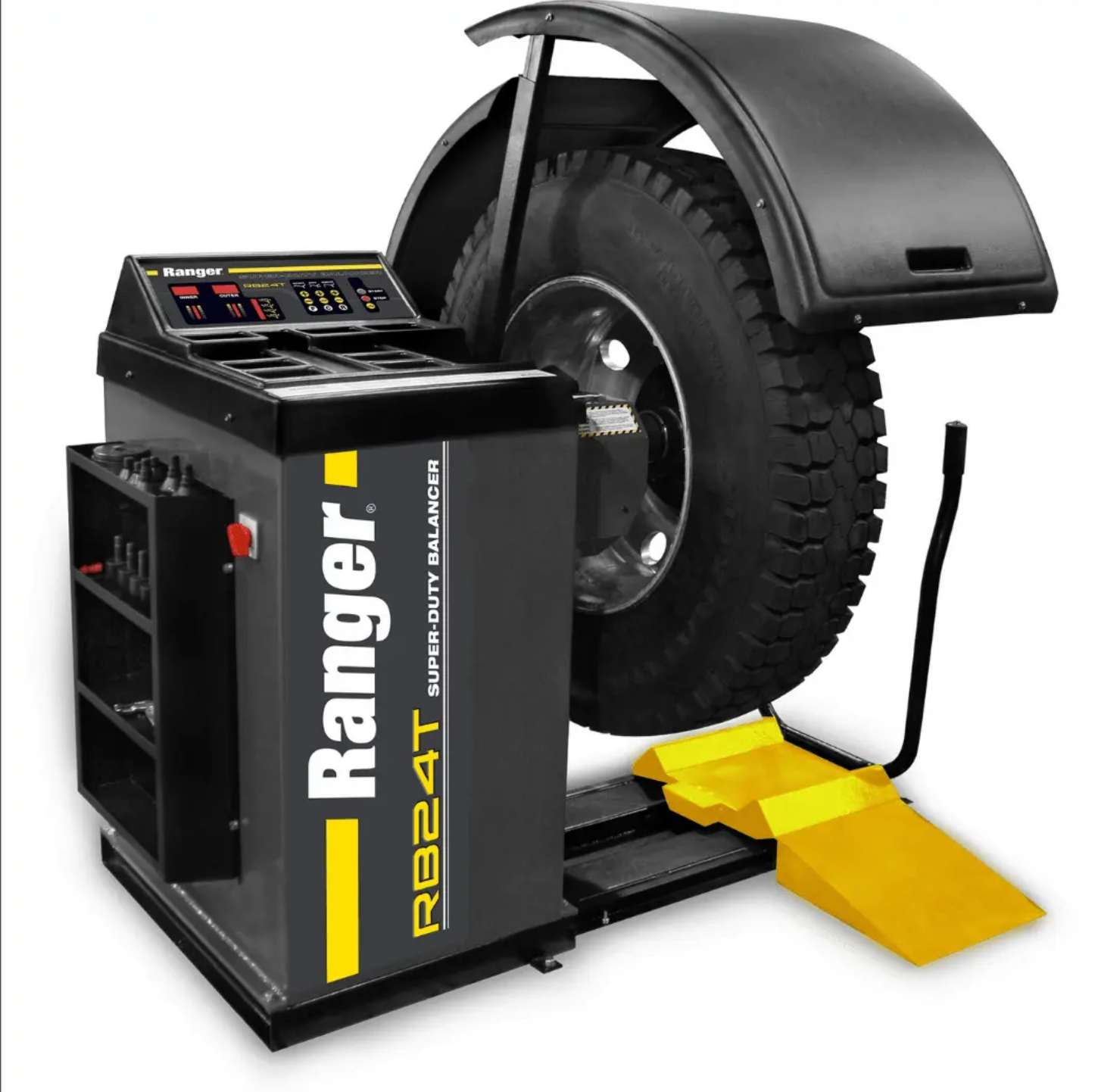

Ranger RB24T Heavy-Duty Truck Wheel Balancer with Adapter Kit and Quick-Chuck

The Ranger RB24T is a professional-grade truck wheel balancer built to meet the heavy-duty demands of commercial tire shops, fleet maintenance centers, and industrial service operations. Engineered with robust construction and precision mechanics, it handles oversized truck, bus, and OTR wheels with exceptional balance accuracy and speed. With electronic braking, smooth belt-driven operation, and advanced calibration control, the RB24T keeps downtime low and productivity high — exactly what high-volume environments need.

Specifications

• Shipping Weight: 825 lbs. (374 kg)
• Max. Tire Weight: 400 lbs. (181 kg)
• Max. Tire Diameter: 50” (1,270 mm)
• Max. Wheel Diameter: 30” (762 mm)
• Wheel Width Capacity: 2” - 20” (51 mm - 508 mm)
• Power Supply: 208 - 240V, 50 / 60 Hz, 1 Ph
• Drive Motor: 1.5 HP, 380V, 50 / 60 Hz, 3 Ph
• Drive System: Ribbed Nylon Fiber Drive Belt
• Cycle Time: 7 - 10 seconds (average)
• Balancing Modes: 1 Dynamic / 1 Static / 3 Alloy
• Balancing Speed: 220 RPM
• Balancing Increments: 0.25 or 0.01 oz
• Accuracy (Cars & Light Trucks): ±1 gram / 0.03 oz
• Accuracy (Truck / Bus / OTR): ±10 grams / 0.35 oz
• Working Temperature: 27°F (-5°C) - 82°F (50°C)
• Wheel Spin Braking: Electronic Pulse / Pneumatic Brake
• Wheel Hold Device: Pneumatic Brake
• Resolution: ±7 grams (0.25 oz)
• Shaft Size: 40 mm
