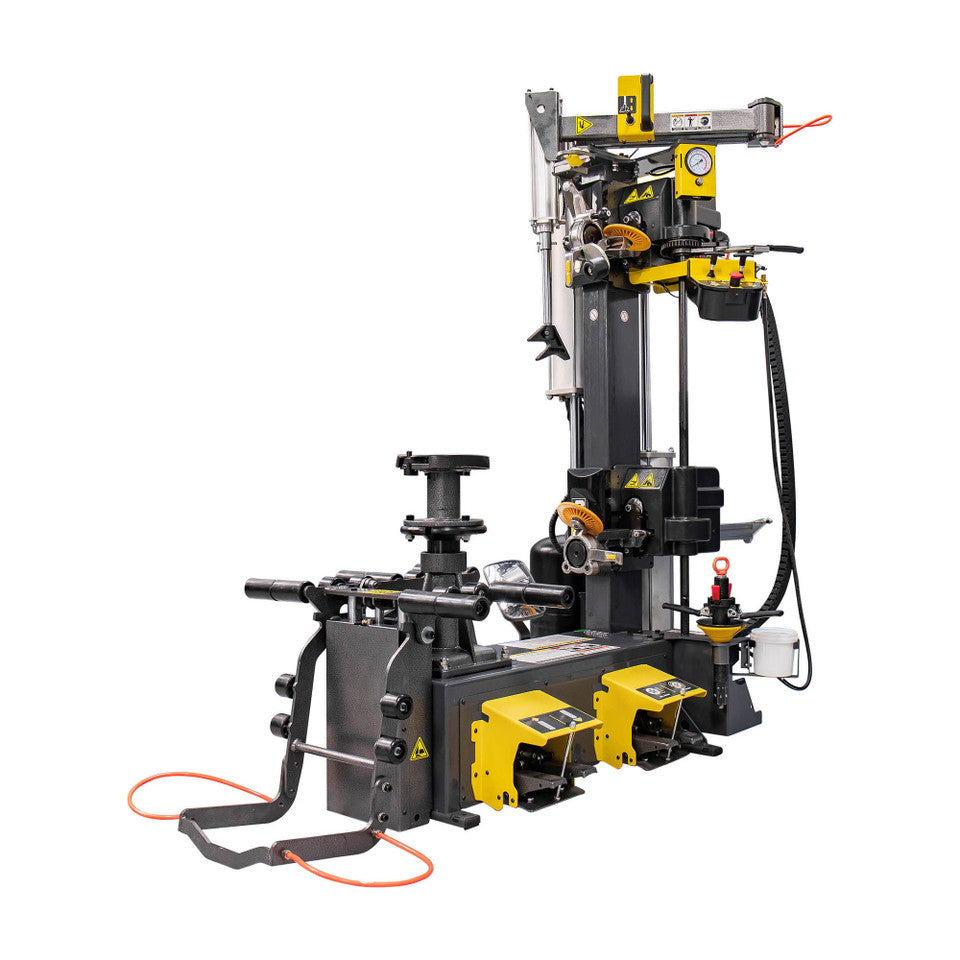

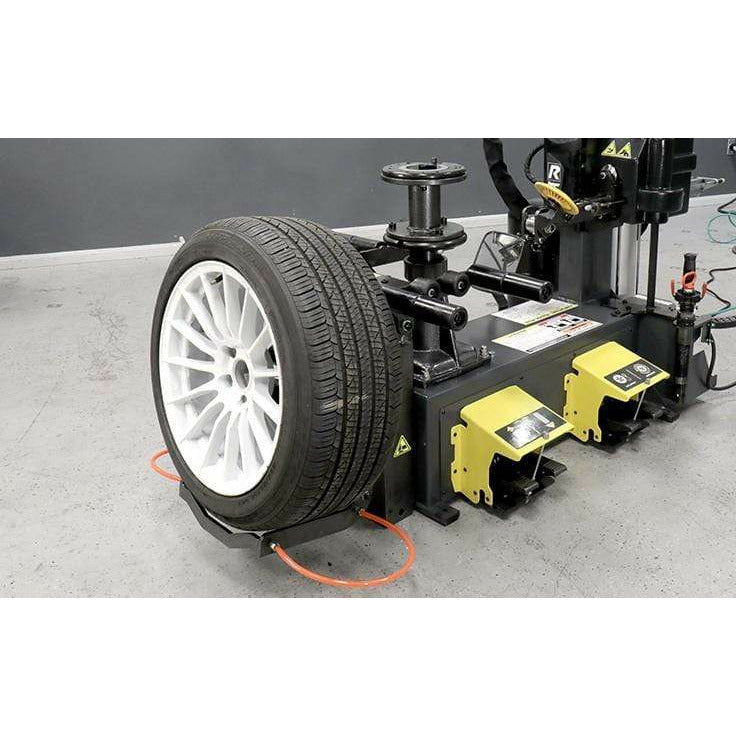

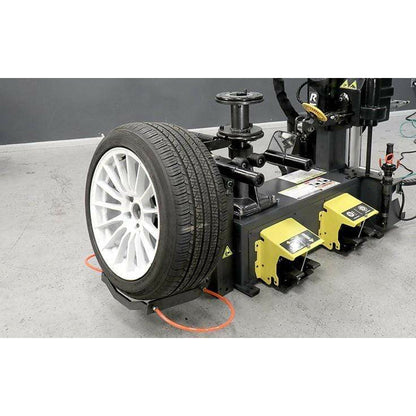

Ranger RV1 Wheel Guardian Touchless Tire Changer Machine

The Ranger RV1 Wheel Guardian redefines modern tire servicing with its fully touchless technology and precision engineering. Designed for high-end performance garages and workshops, this advanced machine simplifies bead breaking and tire replacement with remarkable accuracy. Its automated operation minimizes manual effort, helping technicians complete jobs faster while keeping rims and tires perfectly protected. Built for efficiency, safety, and durability, the RV1 is the future of professional wheel service.

Specifications

• Shipping Weight: 1,004 lbs. (455 kg)
• Maximum Tire Diameter: 47" (1,194 mm)
• Rim Diameter Range: 13" - 30" (330 mm - 762 mm)
• Maximum Wheel Width: 15" (381 mm)
• Overall Depth: 71" (1,803 mm)
• Overall Height: 73" (1,854 mm)
• Overall Width: 34" (864 mm)
• Motor Specs: 3 HP (220 VAC 50-60 HZ)
• Motor Power: 1.1 kW / 24A / NEMA 30 amp plug
• Air Supply Requirements: 140 - 165 psi (10 - 11 bar)
• Air Consumption: 1 SCFM / 27 L/Min
• RPM of Turntable: 7 - 14 turns/min
• Assist Type: Single-Tower Assist
• Speed: Standard
• Mount / Demount Tool: Steel-Alloy with Polymer Guards / Leverless
• Clamping Type: Center Post with Quick Clamp

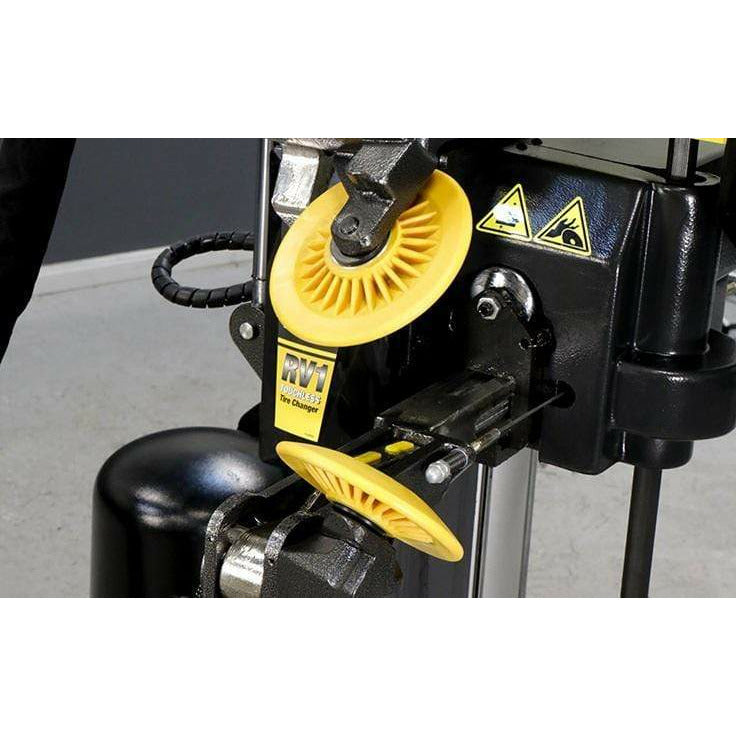

• Bead Loosening Type: Upper / Lower Roller
• Max Tire Weight: 143 lbs. (65 kg)
• Shipping Dimensions: 26" x 71" x 78" (660 mm x 1,803 mm x 1,981 mm)
