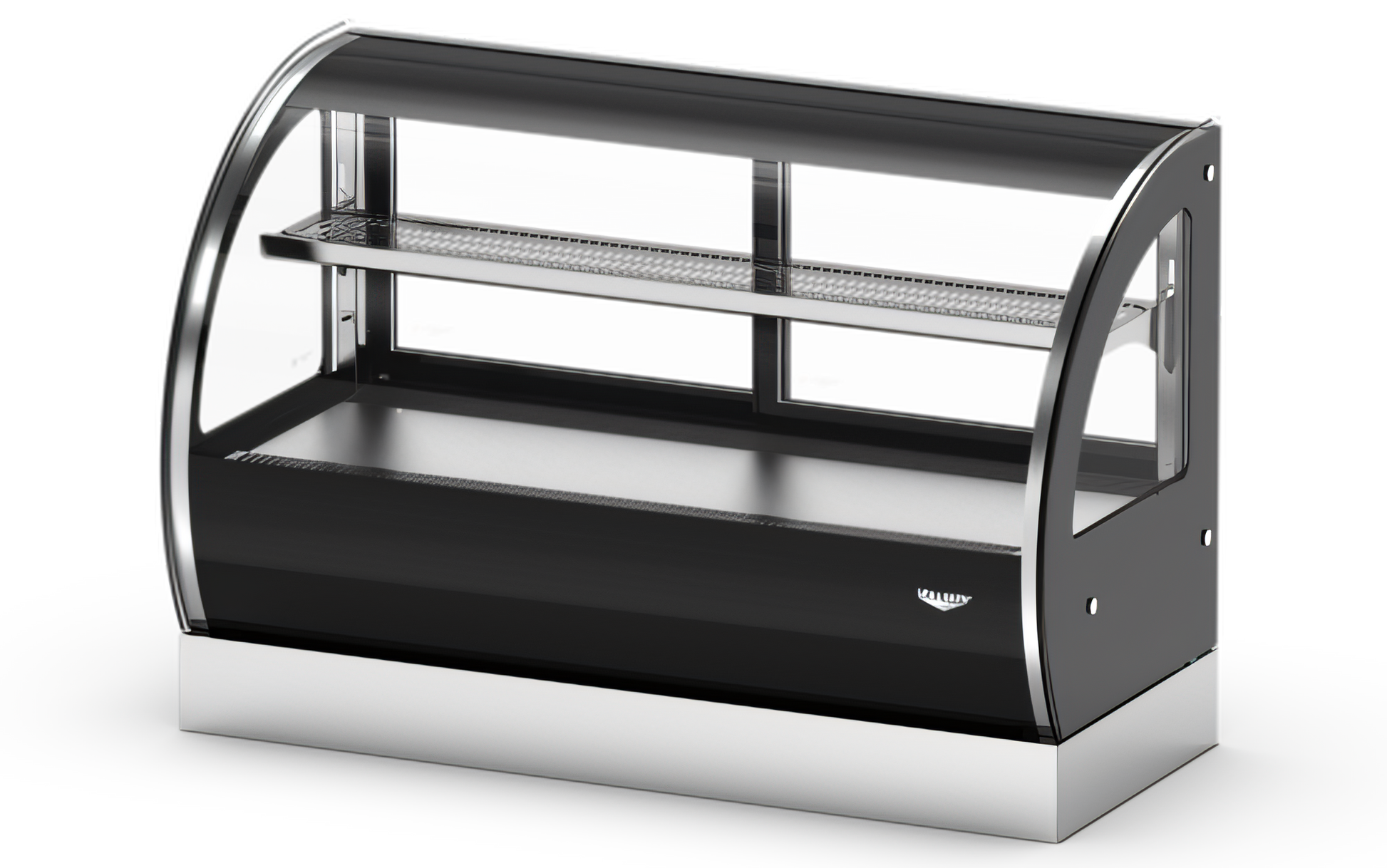

Vollrath Heated Display Case – 60" Curved Countertop
Model HDC9260 | 104 °F–165 °F | 120 V
Showcase and serve hot, ready-to-eat foods with confidence.
The Vollrath HDC9260 combines eye-catching LED illumination, energy-efficient curved glass
and precise digital heat control to keep deli favorites safely within temperature while driving impulse sales.
Key features & benefits
- Bright, long-life LED lighting at the top and shelf level highlights every product.
- Curved, argon-filled double-pane glass with low-E coating offers superior insulation and a modern aesthetic.
- Digitally controlled thermostat maintains a broad 104 °F – 165 °F (40 °C – 74 °C) range for maximum menu flexibility.
- Internal fans circulate hot air evenly across the display surface—no hot spots.
- One floating shelf with three height positions lets you adjust layouts on the fly.
- Two rear sliding glass doors lift out for fast loading and easy cleaning.
- Can be run as a heated or ambient merchandiser to suit changing dayparts.
- 6 ft (1.8 m) cord with NEMA 5-15P plug—just set in place and power on.
- Optional 4" adjustable legs (sold separately) add clearance for cleaning beneath the unit.
Ideal for
- Deli & grab-and-go departments
- Convenience stores & coffee shops
- Supermarket hot bars
- Catering & concession stands
Technical specifications
| Overall width |
59.9" (152 cm) |
| Overall depth |
21.5" (55 cm) |
| Overall height |
32" (81 cm) |
| Display levels |
Base deck + 1 adjustable shelf (three positions) |
| Service access |
(2) rear sliding glass doors, lift-off style |
| Temperature range |
104 °F – 165 °F (40 °C – 74 °C) |
| Heating control |
Digital thermostat with LED readout |
| Electrical |
120 V / 50-60 Hz / 1-ph, 5.8 A, 700 W |
| Power cord |
6 ft (1.8 m) with NEMA 5-15P plug |
| Certifications |
cULus Listed, UL EPH Classified (NSF/ANSI 4) |
| Shipping weight |
≈ 414.5 lb (188 kg) |
Installation & clearance:
Countertop placement allows zero side clearance, but keep the operator side and the top of the unit unobstructed to ensure proper ventilation.
Do not block bottom vents or let product overhang the shelf.
Ships via truck freight. Vollrath standard warranty applies—see full policy at
vollrathfoodservice.com.
